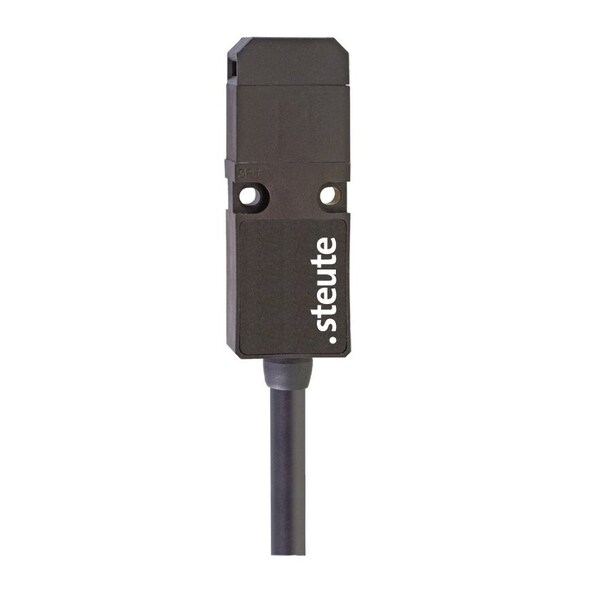

ST 14 2O - 2m - Safety Interlock Switch w/ Separate Actuator, 2NC contacts, and 2m cable
Mfr # 1053987
Zoro # G423330385
product price:Â $108.99
/ea
Free Shipping & Returns
Key Features
Height
81.5 mm
Width
30 mm
Depth
16 mm
IP Rating
IP67 (IEC/EN 60529)
Operating Temp. Range
–20 °C to +75 °C
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 1053987
- Zoro #
- G423330385
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Height
- 81.5 mm
- Width
- 30 mm
- Depth
- 16 mm
- Length
- 22 mm
Details
- Item
- Safety switch with separate actuator
- IP Rating
- IP67 (IEC/EN 60529)
- Operating Temp. Range
- –20 °C to +75 °C
- Utilisation category
- AC-15; DC-13
- Switch Type
- Type 2
- Switching Elements
- 2 NC contacts, type Zb
- Body Material
- Thermoplastic, Glass-Fibre Reinforced
- Finish
- Not specified (thermoplastic enclosure)
- Application
- Safety switch with separate actuator for guard door monitoring and machine safety applications
- Short-circuit protection
- 6 A gG/gN fuse
- Color
- Black
- Voltage
- Ui: 250 V; Uimp: 4 kV
- Standards
- EN 60947-5-1, EN ISO 13849-1, EN ISO 14119
- Mechanical Life
- > 1 million operations
Description
The ST 14 2O - 2m is a compact safety interlock switch designed for use with a separate actuator. It features a durable thermoplastic enclosure and an integrated 2 m (6.6 ft) molded cable. The switch includes a slow action contact block with two normally closed contacts (2 NC). Its modular design allows pairing with straight, angled, or flexible actuator heads, enabling installation in various approach directions (see accessories). The ST 14 series is commonly used for monitoring guard positions, access panels, and movable machine elements where a safety interlock function is required.
