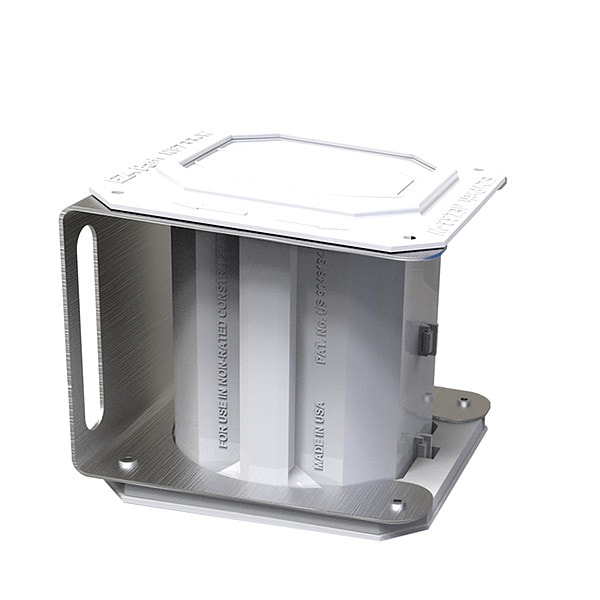

Smoke and Acoustical Pathway, Rectangle

  • Mfr # NEZ33CK2

  • Zoro # G4801303

product price:  $100.99
/ea
Free Shipping & Returns

Key Features

Color
White
Material
Thermoplastic
Fire Rating
Not Rated
Standards
L Ratings Tested, OSHA 29 CFR 1910.1200, STC/ASTME90-09, UL2043
Usage Location
Non-Rated Walls and Floors
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
NEZ33CK2
Zoro #
G4801303
UPC #
730573111680
Country of Origin
United States

Dimensions

Overall Length
10.25 in
Overall Height
6.5 in
Overall Width
8.25 in
Length
10 1/4 in
Width
8 1/4 in

Details

Item
Smoke and Acoustical Pathway Device
Color
White
Material
Thermoplastic
Fire Rating
Not Rated
Standards
L Ratings Tested, OSHA 29 CFR 1910.1200, STC/ASTME90-09, UL2043
Usage Location
Non-Rated Walls and Floors
Shape
Rectangular
Includes
(2) Short Screws, (2) Split Device Halves, (4) Long Screws, Bracket, Gasket, Labels
For Use On
Cable, Cable Trays
Features
Allows for Moves, Adds, and Changes, Self Sealing Design Providing STC and L Ratings
Includes Mounting Hardware
Yes
Inner Material
Silicone Rubber
Body Material
Thermoplastic
Mount Type
Ceiling, Floor, Wall
Cable Loading Area
6.7 sq in
Minimum Service Temperature
-30 Degrees F
Maximum Service Temperature
130 Degrees F
Fire Resistance Type
Smoke & Acoustical
Paintable
Yes
Leakage Rating
Less Than 1 cfm (0% Visual Fill), Less Than 2.5 cfm (100% Visual Fill)
Firestop Type
Pass Through Devices for Walls and Ceilings

Description

Smoke and Acoustical Pathway Device, Cable Loading Area 6.7 sq in, Fire Rating Not Rated, For Pipe Size Not Applicable, For Use On Cable, Cable Trays, Includes (2) Short Screws, (2) Split Device Halves, (4) Long Screws, Bracket, Gasket, Labels, Includes Mounting Hardware Yes, Outside Diameter Not Applicable, Overall Height 6.5 in, Overall Length 10.25 in, Overall Width 8.25 in, Shape Rectangular, Usage Location Non-Rated Walls and Floors, Body Material Thermoplastic, Color White
