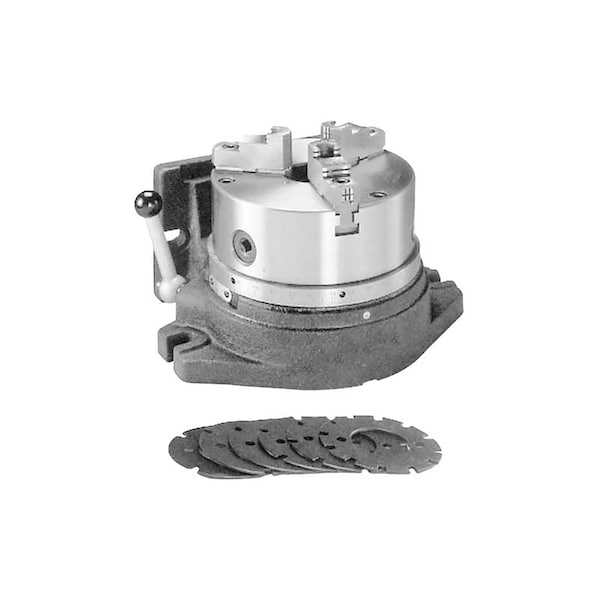

CC8 827 Simple Index
Mfr # 326138
Zoro # G907186002
product price:Â
$
3,236.99
/ea
Additional $145.00 delivery surcharge applies per item.
Key Features
Includes
Chuck
Chuck Size
8.27 in
Centerline Height
149.2 mm
Spacer Type
Simple Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 326138
- Zoro #
- G907186002
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Chuck Size
- 8.27 in
- Centerline Height
- 149.2 mm
Details
- Includes
- Chuck
- Spacer Type
- Simple Index
Description
Spacer Type Simple Index Includes Chuck Yes Chuck Diameter Decimal Inch 827 Centerline Height Decimal Inch 587 Centerline Height mm 1492 The Simple Index is a heavyduty base on which is mounted a hardened and ground precision turntable It can be used in either a horizontal and vertical position Using one of the masking plates provided the index can carry out many dividing functions Indexing of 2, 3, 4, 6, 8, 12 and 24 divisions can be rapidly and simply carried out The speciallymade 3jaw scroll chuck also simplifies the indexing of long workpieces Optional equipment Master indexing plate with 20 or 30 notches can be supplied to special orderWhen used with the suitable masking plates dividing into 2, 4, 5, 10, and 2, 3, 5, 6, 10, 15 are possible Special Accessories 3jaw scroll chuck diameter 8 1 piece Adjustable tailstock Face plate 10 maximum Masking plates 2, 3, 4, 6, 8, 12 one piece of each
