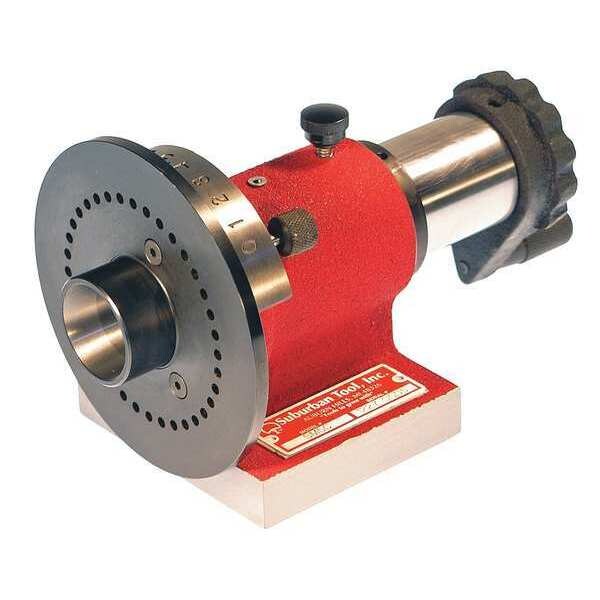

Spin Index Fixture, 5-1/4inH, 9-11/16inL
Mfr # SM-5C
Zoro # G2434629
product price:Â $1,369.99
/ea
Free Shipping & Returns
Key Features
Collet Capacity
All 5C Collets
Through Hole Dia.
1-1/4"
Height to Spindle Centerline
2-3/4"
Overall Length
9.69 in
Overall Width
4.375 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SM-5C
- Zoro #
- G2434629
- UPC #
- 662619003850
- Country of Origin
- United States
Dimensions
- Through Hole Dia.
- 1-1/4"
- Height to Spindle Centerline
- 2-3/4"
- Overall Length
- 9.69 in
- Overall Width
- 4.375 in
- Base Length
- 3 7/8 in
- Base Width
- 4 3/8 in
- Overall Height
- 5.25 in
- Centerline Height - Maximum
- 2 3/4 in
- Through Hole Diameter
- 1 1/4 in
- Compatible Collet Size - Maximum
- 1.125 in
- Compatible Collet Size - Minimum
- 0.063 in
- Wire Rope Length
- 9.69 in
Details
- Item
- Spin Master Index Fixture
- Collet Capacity
- All 5C Collets
- Hard Stop Spacing
- 1 Degrees
- Parallelism
- 0.0002 in
- Squareness
- 0.0002 in
- Max. Spindle Runout
- 0.00050"
- Number of Indexing Positions
- 360
- Features
- Keeps Tools Dry and Free of Corrosion and Dust
- Number of Positions
- 360
- Compatible Collet Series
- 5C
- Index Increments
- 5 Degrees
- T.I.R. Tolerance
- 0.0005 in
Description
Spin Index Fixture, Collet Capacity All 5C Collets, Through Hole Dia. 1-1/4 In., Height to Spindle Centerline 2-3/4 In., Overall Length 9-11/16 In., Overall Width 5 In., Base Length 3-7/8 In., Base Width 4-1/4 In., Overall Height 5-1/4 In., Number of Indexing Positions 360
