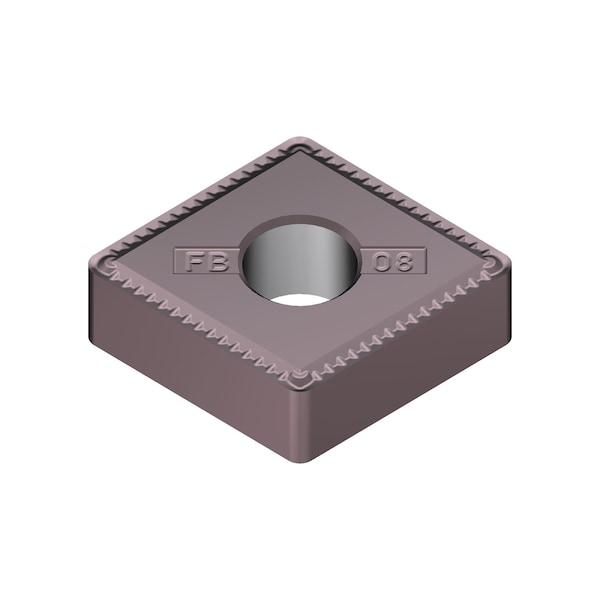

CNMG430.5EFB Grade AC6040M Carbide Turning Insert
Mfr # 196DCUQ
Zoro # G608978920
product price:Â $16.89
/ea
Sold in multiples of 10 for $168.90
Key Features
Insert Style
CNMG
Rake
Negative
ISO Number
CNMG120402N-FB
Material Application ISO Code
M40, M30, M30
Series
AC6000M
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
196DCUQ
Zoro #
G608978920
UPC #
-
Country of Origin
Japan
Dimensions
Nose Radius
0.0079 in
Insert Thickness
0.1874 in
Insert Size
0.5079 in
Mounting Hole Dia.
5.16 mm
Details
Item
Turning Insert
Insert Style
CNMG
Rake
Negative
ISO Number
CNMG120402N-FB
Material Application ISO Code
M40, M30, M30
Series
AC6000M
Mounting Style
Pin and Clamp
Included Angle
80 Degrees
Tolerance Class
M
Workpiece Compatibility
Stainless Steel
ANSI Number
CNMG430.5EFB-AC6040M
Chip-Breaker
Yes
Coating
Absotech
Grade
AC6040M
Insert Material
Carbide
Relief Angle
0 Degrees
Coating Process
PVD
Inscribed Circle
1/2 in
