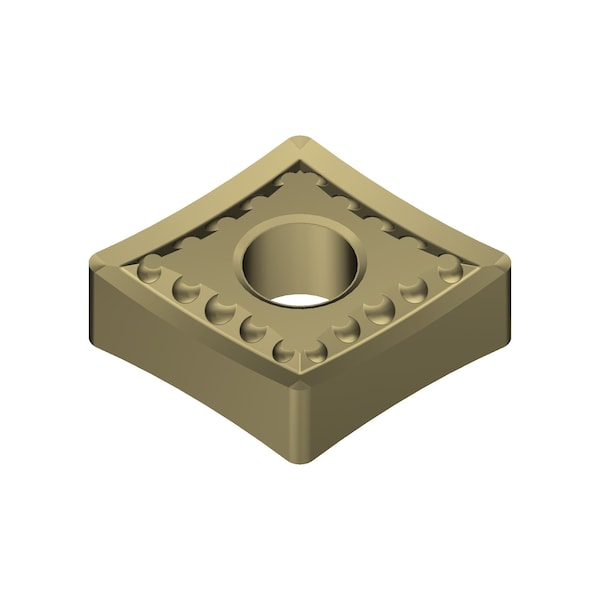

CNMG432EUP Grade AC8020P Carbide Turning Insert
Mfr # 19W1360
Zoro # G708979292
product price:Â $17.69
/ea
Sold in multiples of 10 for $176.90
Key Features
Insert Style
CNMG
Inscribed Circle
1/2 in
Insert Size
0.5079 in
Chip-Breaker
Yes
Grade
AC8020P
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
19W1360
Zoro #
G708979292
UPC #
-
Country of Origin
Japan
Dimensions
Insert Size
0.5079 in
Mounting Hole Dia.
5.16 mm
Insert Thickness
0.1874 in
Nose Radius
0.0315 in
Details
Item
Turning Insert
Insert Style
CNMG
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
AC8020P
Insert Material
Carbide
Rake
Negative
ISO Number
CNMG120408N-UP
Coating Process
CVD
Tolerance Class
M
Series
AC8000P
Coating
Absotech
Mounting Style
Pin and Clamp
Relief Angle
0 Degrees
Included Angle
80 Degrees
ANSI Number
CNMG432EUP-AC8020P
Material Application ISO Code
P20
Workpiece Compatibility
Steel
Description
