Shop SUMITOMO
See all product information

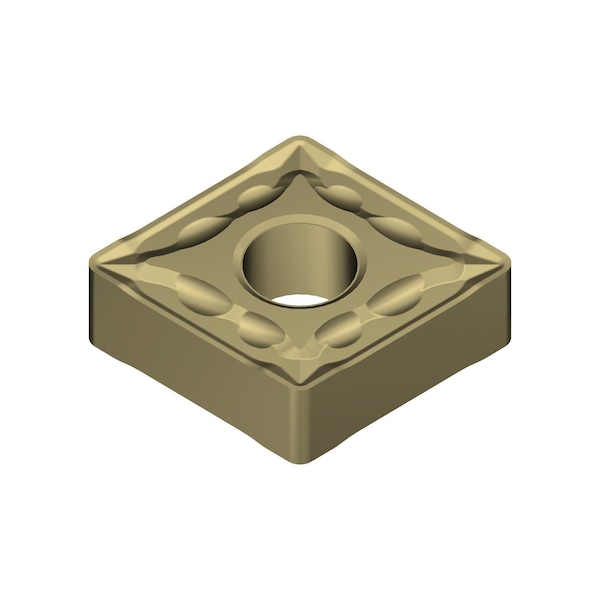

CNMG643EMU Grade AC8020P Carbide Turning Insert
Mfr # 19W1AFN
Zoro # G608978074
product price:Â $29.69
/ea
Sold in multiples of 10 for $296.90
Key Features
Insert Style
CNMG
Inscribed Circle
3/4 in
Insert Size
0.7598 in
Chip-Breaker
Yes
Grade
AC8020P
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 19W1AFN
- Zoro #
- G608978074
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Insert Size
- 0.7598 in
- Insert Thickness
- 1/4 in
- Mounting Hole Dia.
- 7.94 mm
- Nose Radius
- 0.0472 in
Details
- Item
- Turning Insert
- Insert Style
- CNMG
- Inscribed Circle
- 3/4 in
- Chip-Breaker
- Yes
- Grade
- AC8020P
- Insert Material
- Carbide
- Rake
- Negative
- ISO Number
- CNMG190612N-MU
- Included Angle
- 80 Degrees
- Workpiece Compatibility
- Steel
- Relief Angle
- 0 Degrees
- Tolerance Class
- M
- Mounting Style
- Pin and Clamp
- Coating Process
- CVD
- ANSI Number
- CNMG643EMU-AC8020P
- Material Application ISO Code
- P20
- Series
- AC8000P
- Coating
- Absotech
