  11. Diamond Turning Insert, Diamond, 2, DCMT, 2, Carbide
Shop All Turning Inserts
Sumitomo

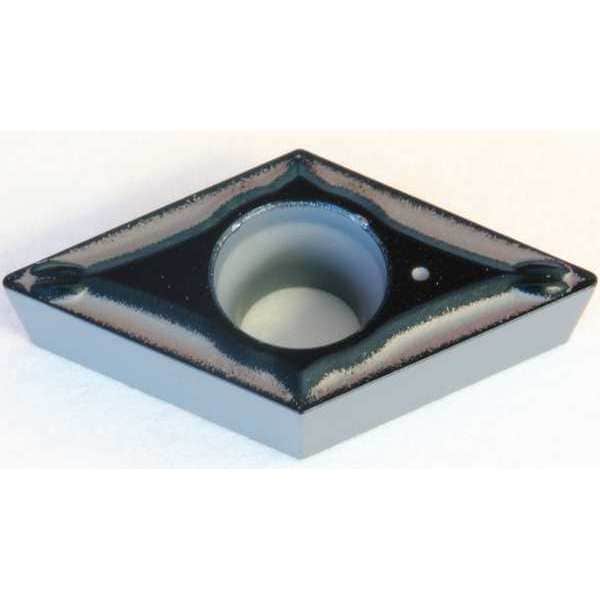

Diamond Turning Insert, Diamond, 2, DCMT, 2, Carbide

product price: $11.85
/ea
Sold in multiples of 10 for $118.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Shape Diamond
  • Insert Style DCMT
  • Inscribed Circle 2
  • Insert Size 21.52
  • Chip-Breaker Yes
See all product information

Product Information

Dimensions

Insert Size 21.52
Corner Radius 2
Nose Radius 0.0313"
Mounting Hole Dia. 0.110"

Details

Item Diamond Turning Insert
Insert Shape Diamond
Insert Style DCMT
Inscribed Circle 2
Chip-Breaker Yes
Grade AC8025P
Workpiece Compatibility Cast Iron (K), Stainless (M), Steel (P)
Insert Material Carbide
Insert Application Finishing
Steel (P) Compatibility Yes
Cast Iron (K) Compatibility Yes
Hardened (H) Compatibility No
Insert Thickness 0.0940"
Non Ferrous (N) Compatibility No
Cutting Direction Neutral
ANSI Number DCMT21.52ESU-AC8025P
ISO Number DCMT070208NSU
Rake 8 Degrees
Super Alloy (S) Compatibility No
Coating CVD
Mounting Style Top and Hole Clamping
No. of Edges 2
For Use With Toolholders, Boring Bars
Stainless (M) Compatibility Yes
Features Adhesion Resistant, Chipping Resistant
Chip-Breaker Code ESU
Cutting Application Turning
Primary Material Application Steel
Primary Material Application ISO Code P25
Finish - Machining Absotech Platinum
Material - Machining Carbide
Insert Holding Type Countersink Hole
Included Angle 55 Degrees
Clearance Angle 7 Degrees
Coating Process CVD
ANSI Code DCMT21.52ESU
Chip-Breaker Style Single
Shape Rhombic
Number of Cutting Edges 2
Thickness 1.5
Measurement System Fractional Inch
Manufacturer Grade AC8025P
Style DCMT
Application Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/4 in, Absotech Platinum, ANSI Code DCMT21.52ESU, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
