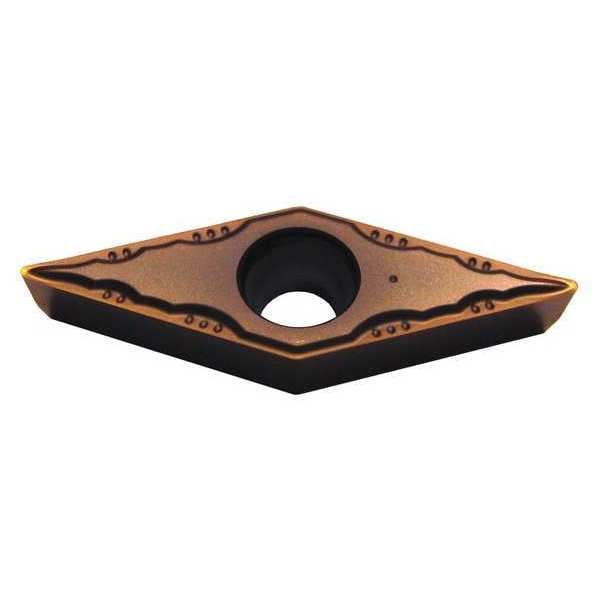

Sumitomo Diamond Turning Insert, Diamond, 2, VBGT, 2, Carbide VBGT222MESI-AC530U - main

Diamond Turning Insert, Diamond, 2, VBGT, 2, Carbide

  • Mfr # VBGT222MESI-AC530U

  • Zoro # G6308331

product price: $13.15
/ea
Sold in multiples of 10 for $131.50

Key Features

Insert Shape
Diamond
Insert Style
VBGT
Inscribed Circle
2
Insert Size
222
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VBGT222MESI-AC530U
Zoro #
G6308331
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
222
Corner Radius
2
Insert Thickness
0.1250"
Mounting Hole Dia.
0.134"
Nose Radius
0.0313"
Thickness
2

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VBGT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
AC530U
Insert Material
Carbide
Insert Application
Roughing
Rake
0 Degrees
ISO Number
VBGT110308MN-SI
Mounting Style
Screw-On
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
No
Coating
CBN
No. of Edges
2
Workpiece Compatibility
Cast Iron (K), Stainless (M), Super Alloy (S)
Stainless (M) Compatibility
Yes
Super Alloy (S) Compatibility
Yes
ANSI Number
VBGT222MESI-AC530U
Measurement System
Fractional Inch
Chip-Breaker Style
Single
Number of Cutting Edges
2
Primary Material Application ISO Code
M, P
Coating Process
PVD
Manufacturer Grade
AC530U
Shape
Rhombic
Insert Holding Type
Countersink Hole
Clearance Angle
5 Degrees
ANSI Code
VBGT222MESI
Cutting Application
Turning
Material - Machining
Carbide
Chip-Breaker Code
MESI
Included Angle
35 Degrees
Features
Excellent Fracture Resistance
Finish - Machining
TiAlN+AlCrN
Primary Material Application
Stainless Steel, Steel
Material
Carbide
Style
VBGT
Application
Roughing

Description

Diamond Turning Insert, Chip-Breaker Code MESI, Inscribed Circle 1/4 in, TiAlN+AlCrN, ANSI Code VBGT222MESI, Chip-Breaker Style Single, Clearance Angle 5 Degrees , Coating Process PVD
