Shop SUMITOMO

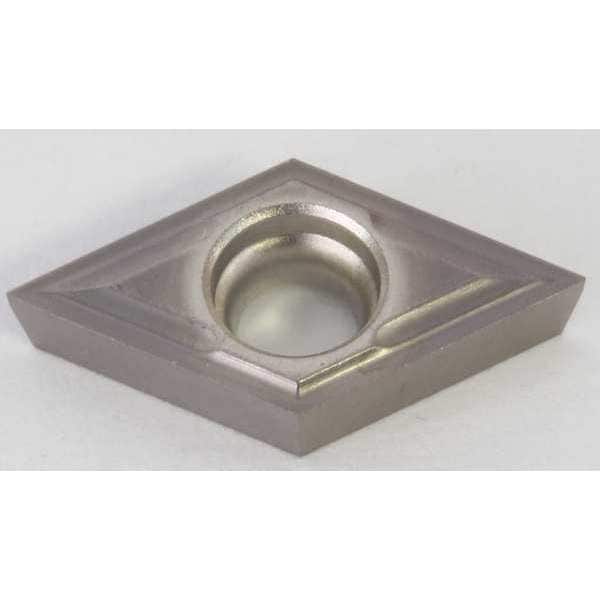

Diamond Turning Insert, Diamond, 3, DCGT, .2, Cermet

  • Mfr # DCGT32.50EFM-T1500A

  • Zoro # G6325140

product price:  $11.35
/ea
Sold in multiples of 10 for $113.50

Key Features

Insert Shape
Diamond
Insert Style
DCGT
Inscribed Circle
3/8 in
Insert Size
32.50
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DCGT32.50EFM-T1500A
Zoro #
G6325140
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
32.50
Corner Radius
0.0039 in
Mounting Hole Dia.
0.173"
Insert Thickness
0.1560"
Nose Radius
0.0039"
Thickness
5/32 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCGT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Finishing
Rake
6 Degrees
ISO Number
DCGT11T301N-SC
Workpiece Compatibility
Stainless (M), Steel (P)
Coating
CVD
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
No
ANSI Number
DCGT32.50EFM-T1500A
Stainless (M) Compatibility
Yes
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Mounting Style
Screw-On
No. of Edges
2
Manufacturer Grade
T1500A
Shape
Rhombic
Included Angle
55 Degrees
Material - Machining
Cermet
ANSI Code
DCGT32.50EFM
Insert Holding Type
Countersink Hole
Chip-Breaker Style
Single
Features
Excellent Wear Resistance and Fracture Resistance
Cutting Application
Turning
Primary Material Application ISO Code
P05 - P30
Measurement System
Fractional Inch
Chip-Breaker Code
EFM
Clearance Angle
7 Degrees
Primary Material Application
Steel
Number of Cutting Edges
2
Material
Cermet
Style
DCGT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code EFM, Inscribed Circle 3/8 in, ANSI Code DCGT32.50EFM, Chip-Breaker Style Single, Clearance Angle 7 Degrees
