  11. Diamond Turning Insert, Diamond, 3, VBGT, 1, Carbide

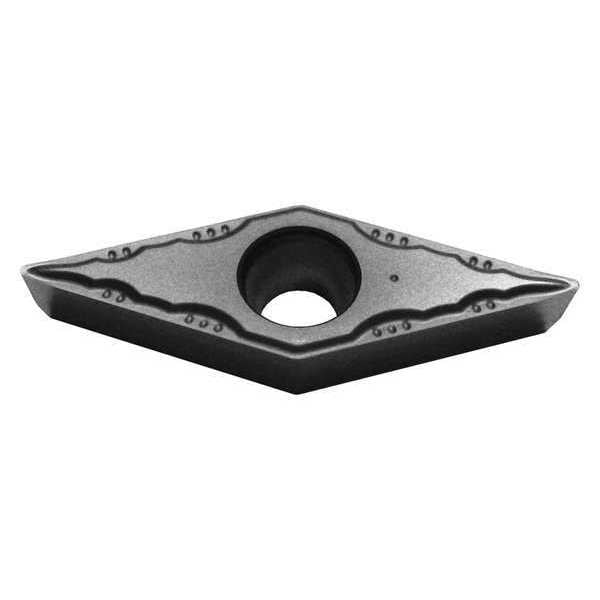

Sumitomo Diamond Turning Insert, Diamond, 3, VBGT, 1, Carbide VBGT331MESI-AC6030M - main

Diamond Turning Insert, Diamond, 3, VBGT, 1, Carbide

  • Mfr # VBGT331MESI-AC6030M

  • Zoro # G6308200

product price: $19.75
/ea
Sold in multiples of 10 for $197.50

Key Features

Insert Shape
Diamond
Insert Style
VBGT
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VBGT331MESI-AC6030M
Zoro #
G6308200
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
1
Nose Radius
0.0156"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.173"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VBGT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC6030M
Insert Material
Carbide
Insert Application
Roughing
Rake
0 Degrees
ISO Number
VBGT160404MN-SI
Steel (P) Compatibility
No
Mounting Style
Screw-On
Workpiece Compatibility
Stainless (M)
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Coating
CBN
ANSI Number
VBGT331MESI-AC6030M
Non Ferrous (N) Compatibility
No
No. of Edges
2
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
No
For Use With
Toolholders, Boring Bars
Included Angle
35 Degrees
Shape
Rhombic
Manufacturer Grade
AC6030M
Coating Process
CVD
Chip-Breaker Style
Single
Finish - Machining
Absotech
Features
Fracture Resistant
Clearance Angle
5 Degrees
Number of Cutting Edges
2
Measurement System
Fractional Inch
ANSI Code
VBGT331MESI
Cutting Application
Turning
Material - Machining
Carbide
Insert Holding Type
Countersink Hole
Chip-Breaker Code
MESI
Primary Material Application
Stainless Steel
Primary Material Application ISO Code
M
Material
Carbide
Application
Roughing
Style
VBGT

Description

Diamond Turning Insert, Chip-Breaker Code MESI, Inscribed Circle 3/8 in, Absotech, ANSI Code VBGT331MESI, Chip-Breaker Style Single, Clearance Angle 5 Degrees , Coating Process CVD
