  11. Diamond Turning Insert, Diamond, 3, VBMT, 2, Carbide

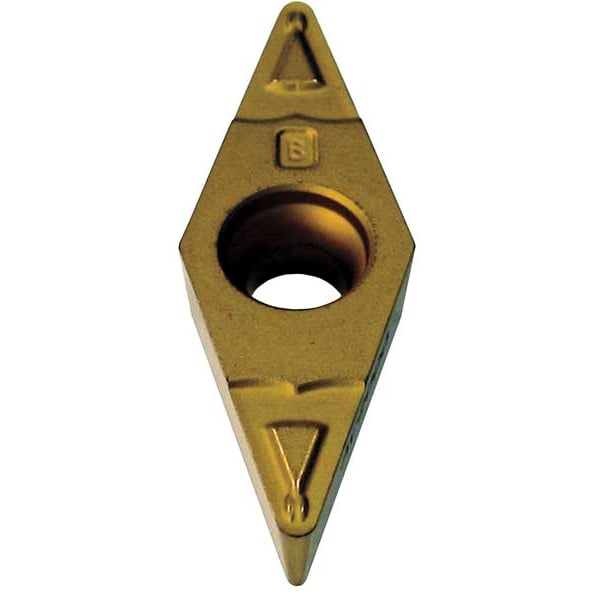

Sumitomo Diamond Turning Insert, Diamond, 3, VBMT, 2, Carbide VBMT332ESU-AC700G - main

Diamond Turning Insert, Diamond, 3, VBMT, 2, Carbide

  • Mfr # VBMT332ESU-AC700G

  • Zoro # G3762586

product price: $20.35
/ea
Sold in multiples of 10 for $203.50

Key Features

Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VBMT332ESU-AC700G
Zoro #
G3762586
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
2
Insert Thickness
0.1875"
Nose Radius
0.0312"
Mounting Hole Dia.
0.173
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC700G
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
VBMT160408NSU
Relief Angle
5 Degrees
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Cast Iron (K)
Steel (P) Compatibility
No
Coating
Super FF TiCN/Al2O3/TiN CVD
Mounting Style
Screw-On
ANSI Number
VBMT332ESU-AC700G
No. of Edges
2
Hardened (H) Compatibility
No
For Use With
SVNB Toolholders, A-SVUB, A-SVQB, D-SVZB Boring Bars
Included Angle
35 Degrees
Primary Material Application
Steel
Material - Machining
Carbide
Measurement System
Fractional Inch
Clearance Angle
5 Degrees
Chip-Breaker Code
ESU
Manufacturer Grade
AC700G
Coating Process
CVD
Features
Excellent Wear Resistance
Finish - Machining
Al203+TiCN
Primary Material Application ISO Code
P
Cutting Application
Turning
Number of Cutting Edges
2
ANSI Code
VBMT332ESU
Chip-Breaker Style
Single
Shape
Rhombic
Insert Holding Type
Countersink Hole
Material
Carbide
Application
Finishing
Style
VBMT

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 3/8 in, Al203+TiCN, ANSI Code VBMT332ESU, Chip-Breaker Style Single, Clearance Angle 5 Degrees , Coating Process CVD
