Shop SUMITOMO

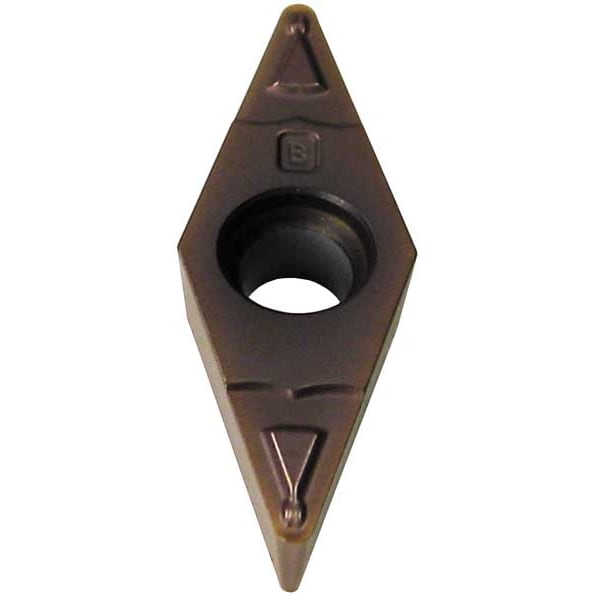

Diamond Turning Insert, Diamond, 3/8 in, VBMT, 1/32 in, Carbide

  • Mfr # VBMT332ESU-AC520U

  • Zoro # G5750543

product price:
$
15.15
/ea
Sold in multiples of 10 for $151.50

Key Features

Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
3/8 in
Insert Size
332
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VBMT332ESU-AC520U
Zoro #
G5750543
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
1/32 in
Nose Radius
0.0312"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.173
Thickness
3/16 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC520U
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
VBMT160408NSU
ANSI Number
VBMT332ESU-AC520U
No. of Edges
2
Super Alloy (S) Compatibility
Yes
Cutting Direction
Neutral
Cast Iron (K) Compatibility
Yes
Mounting Style
Screw-On
Hardened (H) Compatibility
No
For Use With
SVNB Toolholders, A-SVUB, A-SVQB, D-SVZB Boring Bars
Non Ferrous (N) Compatibility
No
Relief Angle
5 Degrees
Workpiece Compatibility
Cast Iron (K), Stainless (M), Super Alloy (S)
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
No
Coating
Super ZX TiAlN/AlCrN-PVD
Included Angle
35 Degrees
Manufacturer Grade
AC520U
Clearance Angle
5 Degrees
Cutting Application
Turning
Finish - Machining
TiAlN+AlCrN
Material - Machining
Carbide
Number of Cutting Edges
2
Insert Holding Type
Countersink Hole
ANSI Code
VBMT332ESU
Chip-Breaker Style
Single
Chip-Breaker Code
ESU
Features
Excellent Fracture Resistance
Measurement System
Fractional Inch
Coating Process
PVD
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Shape
Rhombic
Primary Material Application ISO Code
M, P, S
Material
Carbide
Style
VBMT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 3/8 in, TiAlN+AlCrN, ANSI Code VBMT332ESU, Chip-Breaker Style Single, Clearance Angle 5 Degrees , Coating Process PVD
