  11. Diamond Turning Insert, Diamond, 3, VCMT, 2, Cermet

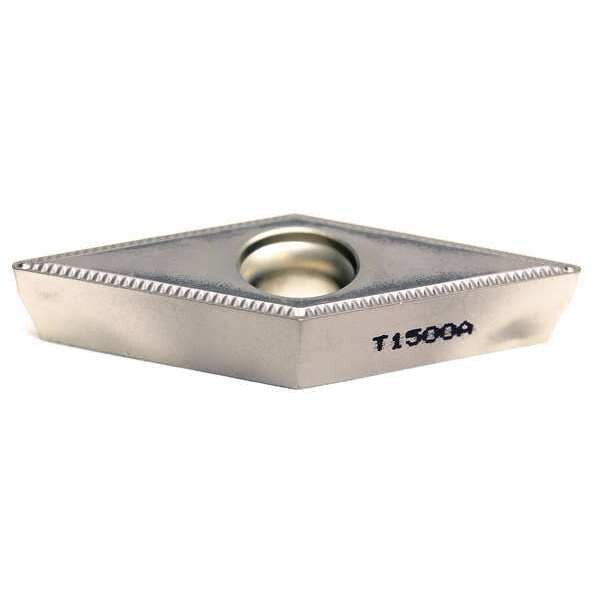

Sumitomo Diamond Turning Insert, Diamond, 3, VCMT, 2, Cermet VCMT332EFB-T1500A - main

Diamond Turning Insert, Diamond, 3, VCMT, 2, Cermet

  • Mfr # VCMT332EFB-T1500A

  • Zoro # G6380468

product price: $14.55
/ea
Sold in multiples of 10 for $145.50

Key Features

Insert Shape
Diamond
Insert Style
VCMT
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VCMT332EFB-T1500A
Zoro #
G6380468
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
2
Insert Thickness
0.1875"
Mounting Hole Dia.
0.173"
Nose Radius
0.0313"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VCMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Finishing
Rake
20 Degrees
ISO Number
VCMT160408N-FB
Coating
CVD
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Mounting Style
Screw-On
Stainless (M) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Hardened (H) Compatibility
No
ANSI Number
VCMT332EFB-T1500A
Workpiece Compatibility
Stainless (M), Steel (P)
Non Ferrous (N) Compatibility
No
No. of Edges
2
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
No
Primary Material Application
Steel
Included Angle
35 Degrees
Features
Excellent Wear Resistance and Fracture Resistance
Measurement System
Fractional Inch
Chip-Breaker Code
EFB
Primary Material Application ISO Code
P05 - P30
Number of Cutting Edges
2
ANSI Code
VCMT332EFB
Manufacturer Grade
T1500A
Material - Machining
Cermet
Insert Holding Type
Countersink Hole
Clearance Angle
7 Degrees
Chip-Breaker Style
Single
Shape
Rhombic
Cutting Application
Turning
Material
Cermet
Application
Finishing
Style
VCMT

Description

Diamond Turning Insert, Chip-Breaker Code EFB, Inscribed Circle 3/8 in, ANSI Code VCMT332EFB, Chip-Breaker Style Single, Clearance Angle 7 Degrees
