  11. Diamond Turning Insert, Diamond, 3, VNMG, 1, Carbide

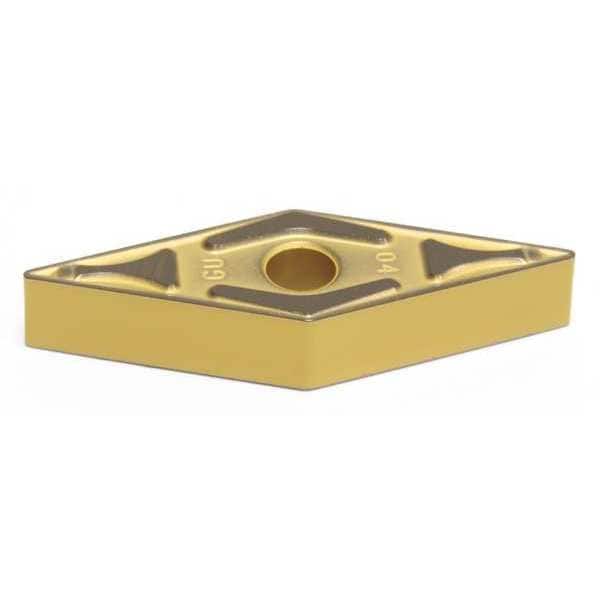

Sumitomo Diamond Turning Insert, Diamond, 3, VNMG, 1, Carbide VNMG331EGU-AC810P - main

Diamond Turning Insert, Diamond, 3, VNMG, 1, Carbide

  • Mfr # VNMG331EGU-AC810P

  • Zoro # G6379969

product price: $15.29
/ea
Sold in multiples of 10 for $152.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG331EGU-AC810P
Zoro #
G6379969
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
1
Nose Radius
0.0156"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.150"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
VNMG160404NGU
Coating
CVD
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Non Ferrous (N) Compatibility
No
Mounting Style
Top and Hole Clamping
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
For Use With
Toolholders, Boring Bars
ANSI Number
VNMG331EGU-AC810P
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
No. of Edges
2
Chip-Breaker Style
Double
Primary Material Application
Steel
Material - Machining
Carbide
Cutting Application
Turning
Number of Cutting Edges
2
Primary Material Application ISO Code
P10
Insert Holding Type
Straight Hole
Coating Process
CVD
Chip-Breaker Code
EGU
Shape
Rhombic
Clearance Angle
0 Degrees
Features
Excellent Wear Resistance
ANSI Code
VNMG331EGU
Finish - Machining
Al203+TiCN
Included Angle
35 Degrees
Measurement System
Fractional Inch
Manufacturer Grade
AC810P
Material
Carbide
Style
VNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code EGU, Inscribed Circle 3/8 in, Al203+TiCN, ANSI Code VNMG331EGU, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
