  6. Diamond Turning Insert, Diamond, 4, CNGA, 3, CBN

This item is Discontinued.

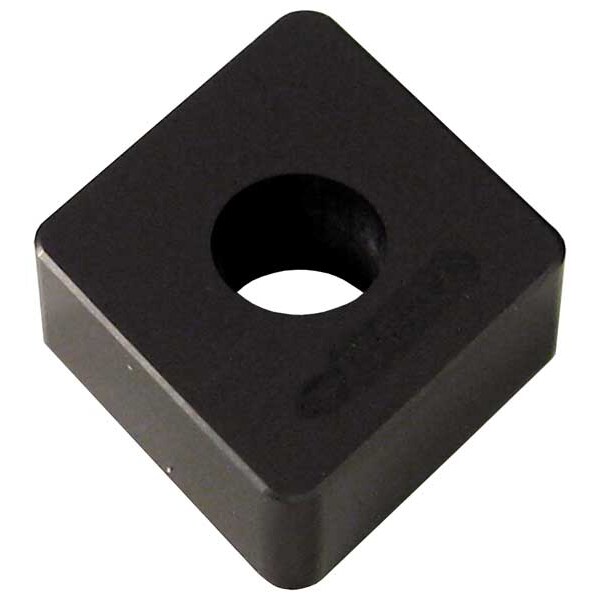

Sumitomo Diamond Turning Insert, Diamond, 4, CNGA, 3, CBN CNGA433-BNS800

Diamond Turning Insert, Diamond, 4, CNGA, 3, CBN (Discontinued)

  • Mfr # CNGA433-BNS800
  • Zoro # G5732842
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CNGA433-BNS800
Zoro #
G5732842
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.0472"
Mounting Hole Dia.
0.203
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Chip-Breaker
No
Grade
BNS800
Insert Material
CBN
Insert Application
Roughing
Rake
0 Degrees
ISO Number
CNGA120412
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
Yes
Hardened (H) Compatibility
No
Mounting Style
Clamp
For Use With
DCLN, MCLN, Toolholders, A-MCLN Boring Bars
ANSI Number
CNGA433-BNS800
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Steel (P) Compatibility
No
Relief Angle
0 Degrees
Coating
Uncoated
No. of Edges
4
Workpiece Compatibility
Cast Iron (K), Super Alloy (S)
Number of Cutting Edges
4
Material - Machining
CBN
Manufacturer Grade
BNS800
Clearance Angle
0 Degrees
Primary Material Application ISO Code
K, S
Finish - Machining
Bright (Uncoated)
Included Angle
80 Degrees
Measurement System
Fractional Inch
Shape
Rhombic
Cutting Application
Turning
Insert Holding Type
Straight Hole
Primary Material Application
Cast Iron, Nickel, Titanium
ANSI Code
CNGA433
Material
CBN
Application
Roughing
Style
CNGA

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, Bright (Uncoated), ANSI Code CNGA433, Clearance Angle 0 Degrees
