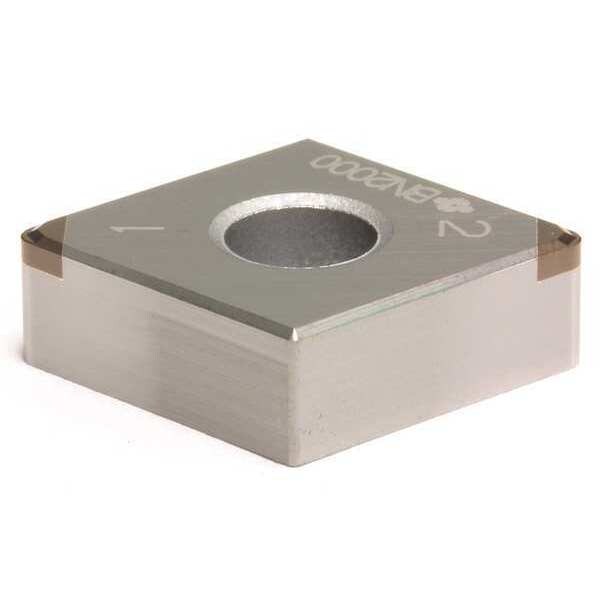

Diamond Turning Insert, Diamond, 4, CNGG, 1, CBN

Name: Diamond Turning Insert, Diamond, 4, CNGG, 1, CBN
Brand: Sumitomo
SKU: G6373477
Price: 81.39 USD
Availability: InStock

81.39

/ea

Insert Shape

Diamond

Insert Style

CNGG

Inscribed Circle

1/2 in

Insert Size

431

Chip-Breaker

Yes

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: 2NUCNGG431FV-BN2000
Zoro #: G6373477
UPC #: -
Country of Origin: Multiple
Item: Diamond Turning Insert
Insert Shape: Diamond
Insert Style: CNGG
Inscribed Circle: 1/2 in
Chip-Breaker: Yes
Grade: BN2000
Insert Material: CBN
Insert Application: Finishing
Rake: Negative
ISO Number: 2NU-CNGG120404FV
Cast Iron (K) Compatibility: Yes
Cutting Direction: Neutral
Mounting Style: Top and Hole Clamping
Non Ferrous (N) Compatibility: No
No. of Edges: 2
For Use With: Toolholders, Boring Bars
Workpiece Compatibility: Cast Iron (K), Hardened (H), Steel (P), Super Alloy (S)
Steel (P) Compatibility: Yes
Stainless (M) Compatibility: No
Hardened (H) Compatibility: Yes
Coating: CVD
Super Alloy (S) Compatibility: Yes
ANSI Number: 2NUCNGG431FV-BN2000
Chip-Breaker Code: FV
Primary Material Application ISO Code: H10 - H20
Included Angle: 80 Degrees
Primary Material Application: Hardened Steel
ANSI Code: 2NU-CNGG431FV
Measurement System: Fractional Inch
Clearance Angle: 0 Degrees
Cutting Application: Turning
Insert Holding Type: Straight Hole
Finish - Machining: Bright (Uncoated)
Wiper Insert: Yes
Number of Cutting Edges: 2
Material - Machining: CBN
Features: Excellent Wear Resistance and Fracture Resistance
Shape: Rhombic
Manufacturer Grade: BN2000
Material: CBN
Application: Finishing
Style: CNGG

Diamond Turning Insert, Chip-Breaker Code FV, Inscribed Circle 1/2 in, Bright (Uncoated), ANSI Code 2NU-CNGG431FV, Clearance Angle 0 Degrees
