Shop SUMITOMO

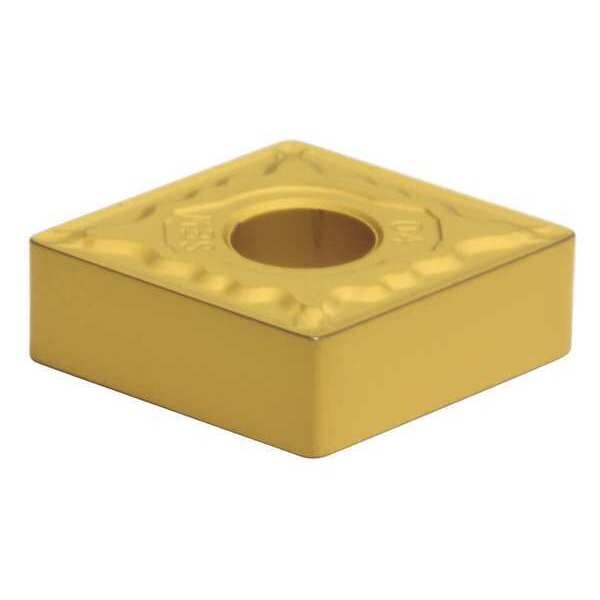

Diamond Turning Insert, Diamond, 4, CNMG, 1, Carbide

  • Mfr # CNMG431ESE-AC810P

  • Zoro # G6330856

product price:
$
13.15
/ea
Sold in multiples of 10 for $131.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
1/2 in
Insert Size
431
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CNMG431ESE-AC810P
Zoro #
G6330856
UPC #
-
Country of Origin
Japan
Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
CNMG120404N-SE
Coating
CVD
ANSI Number
CNMG431ESE-AC810P
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
Stainless (M) Compatibility
Yes
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Mounting Style
Top and Hole Clamping
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Super Alloy (S) Compatibility
No
No. of Edges
4
Primary Material Application ISO Code
P10
Coating Process
CVD
Manufacturer Grade
AC810P
Chip-Breaker Style
Double
Measurement System
Fractional Inch
Shape
Rhombic
ANSI Code
CNMG431ESE
Primary Material Application
Steel
Chip-Breaker Code
ESE
Insert Holding Type
Straight Hole
Included Angle
80 Degrees
Cutting Application
Turning
Finish - Machining
Al203+TiCN
Features
Excellent Wear Resistance
Material - Machining
Carbide
Clearance Angle
0 Degrees
Number of Cutting Edges
4
Material
Carbide
Style
CNMG
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ESE, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code CNMG431ESE, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
