  11. Diamond Turning Insert, Diamond, 4, CNMG, 2, Cermet

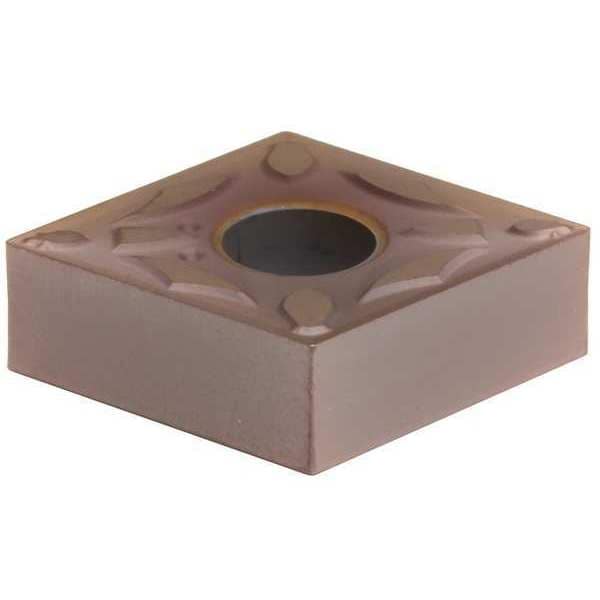

Sumitomo Diamond Turning Insert, Diamond, 4, CNMG, 2, Cermet CNMG432EFA-T1500Z - main

Diamond Turning Insert, Diamond, 4, CNMG, 2, Cermet

  • Mfr # CNMG432EFA-T1500Z

  • Zoro # G6330436

product price: $10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG432EFA-T1500Z
Zoro #
G6330436
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Nose Radius
0.0313"
Mounting Hole Dia.
0.203"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Finishing
Rake
Positive
ISO Number
CNMG120408N-FA
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P)
No. of Edges
4
Mounting Style
Top and Hole Clamping
For Use With
Toolholders, Boring Bars
Coating
CVD
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
No
ANSI Number
CNMG432EFA-T1500Z
Insert Holding Type
Straight Hole
Chip-Breaker Code
EFA
Primary Material Application ISO Code
P
Material - Machining
Cermet
Manufacturer Grade
T1500Z
ANSI Code
CNMG432EFA
Coating Process
PVD
Primary Material Application
Steel
Features
Wear Resistant
Clearance Angle
0 Degrees
Cutting Application
Turning
Included Angle
80 Degrees
Shape
Rhombic
Chip-Breaker Style
Double
Number of Cutting Edges
4
Measurement System
Fractional Inch
Material
Cermet
Style
CNMG
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code EFA, Inscribed Circle 1/2 in, ANSI Code CNMG432EFA, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process PVD
