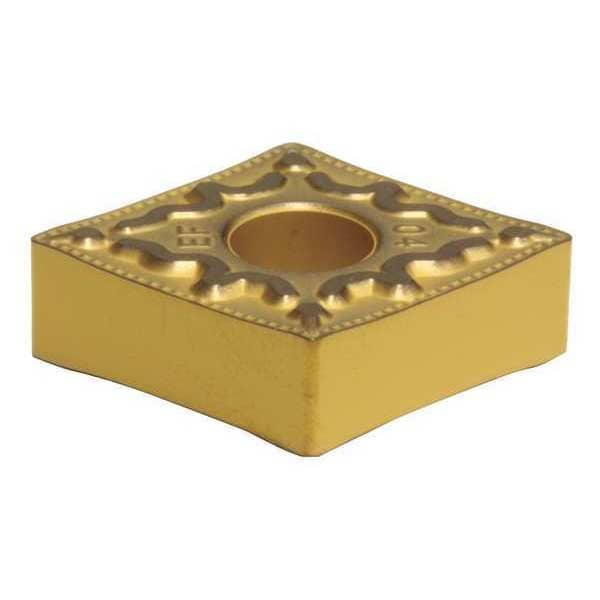

Sumitomo Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide CNMG433EEF-AC6040M - main

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

  • Mfr # CNMG433EEF-AC6040M

  • Zoro # G6329675

product price: $10.65
/ea
Sold in multiples of 10 for $106.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG433EEF-AC6040M
Zoro #
G6329675
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.0469"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC6040M
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
CNMG120412N-EF
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
No
Cutting Direction
Neutral
Steel (P) Compatibility
No
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Stainless (M)
Mounting Style
Top and Hole Clamping
No. of Edges
4
Coating
Cermet
ANSI Number
CNMG433EEF-AC6040M
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Manufacturer Grade
AC6040M
Measurement System
Fractional Inch
Shape
Rhombic
Material - Machining
Carbide
Primary Material Application ISO Code
M
Chip-Breaker Code
EEF
Insert Holding Type
Straight Hole
ANSI Code
CNMG433EEF
Included Angle
80 Degrees
Finish - Machining
TiAlN+AlCrN
Cutting Application
Turning
Coating Process
PVD
Clearance Angle
0 Degrees
Features
Excellent Fracture Resistance
Chip-Breaker Style
Double
Number of Cutting Edges
4
Primary Material Application
Stainless Steel
Material
Carbide
Style
CNMG
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code EEF, Inscribed Circle 1/2 in, TiAlN+AlCrN, ANSI Code CNMG433EEF, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process PVD
