  11. Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

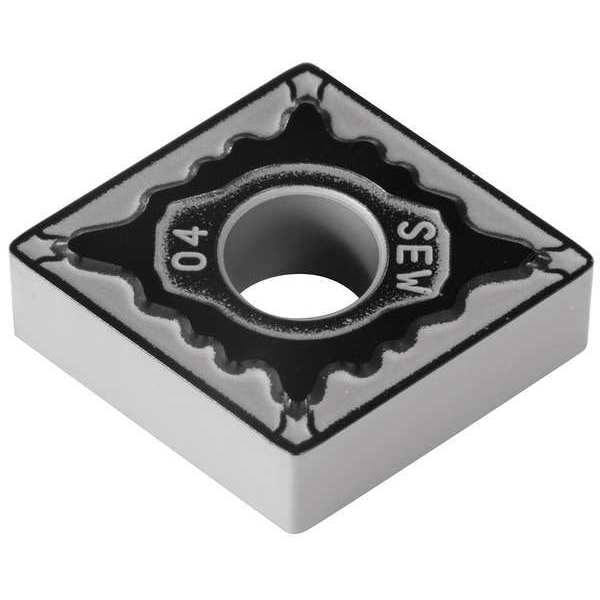

Sumitomo Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide CNMG433ESEW-AC8025P - main

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

  • Mfr # CNMG433ESEW-AC8025P

  • Zoro # G6329158

product price: $12.35
/ea
Sold in multiples of 10 for $123.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG433ESEW-AC8025P
Zoro #
G6329158
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0469"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
CNMG120412N-SEW
Cast Iron (K) Compatibility
Yes
No. of Edges
4
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Mounting Style
Top and Hole Clamping
ANSI Number
CNMG433ESEW-AC8025P
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
Coating
Cermet
Material - Machining
Carbide
Coating Process
CVD
Cutting Application
Turning
Primary Material Application
Steel
Chip-Breaker Code
ESEW
Features
Adhesion Resistant, Chipping Resistant
Measurement System
Fractional Inch
ANSI Code
CNMG433ESEW
Number of Cutting Edges
4
Included Angle
80 Degrees
Finish - Machining
Absotech Platinum
Insert Holding Type
Straight Hole
Clearance Angle
0 Degrees
Manufacturer Grade
AC8025P
Primary Material Application ISO Code
P25
Chip-Breaker Style
Double
Shape
Rhombic
Material
Carbide
Style
CNMG
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ESEW, Inscribed Circle 1/2 in, Absotech Platinum, ANSI Code CNMG433ESEW, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
