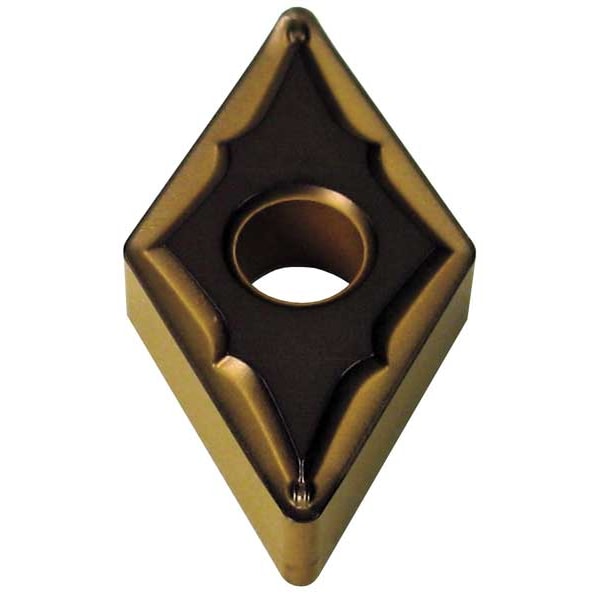

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide DNMG433ESU-AC830P - main

Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

  • Mfr # DNMG433ESU-AC830P

  • Zoro # G3768773

product price: $14.89
/ea
Sold in multiples of 10 for $148.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG433ESU-AC830P
Zoro #
G3768773
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.0472"
Mounting Hole Dia.
0.203
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
DNMG150412NSU
Cutting Direction
Neutral
Super Alloy (S) Compatibility
No
Mounting Style
Clamp
ANSI Number
DNMG433ESU-AC830P
For Use With
DDJN, MDJN Toolholders, A-MDU, A-MDQ Boring Bars
No. of Edges
4
Coating
Super FF TiCN/Al2O3/TiN CVD
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Relief Angle
0 Degrees
Stainless (M) Compatibility
Yes
Primary Material Application ISO Code
P
Features
Excellent Wear Resistance
Material - Machining
Carbide
Included Angle
55 Degrees
Finish - Machining
Al203+TiCN
Chip-Breaker Style
Double
ANSI Code
DNMG433ESU
Insert Holding Type
Straight Hole
Manufacturer Grade
AC830P
Measurement System
Fractional Inch
Shape
Rhombic
Coating Process
CVD
Clearance Angle
0 Degrees
Number of Cutting Edges
4
Primary Material Application
Steel
Cutting Application
Turning
Chip-Breaker Code
ESU
Material
Carbide
Application
Finishing
Style
DNMG

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code DNMG433ESU, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
