  11. Square Turning Insert, Square, 3, SCMT, 1, Carbide
Shop All Turning Inserts
Sumitomo

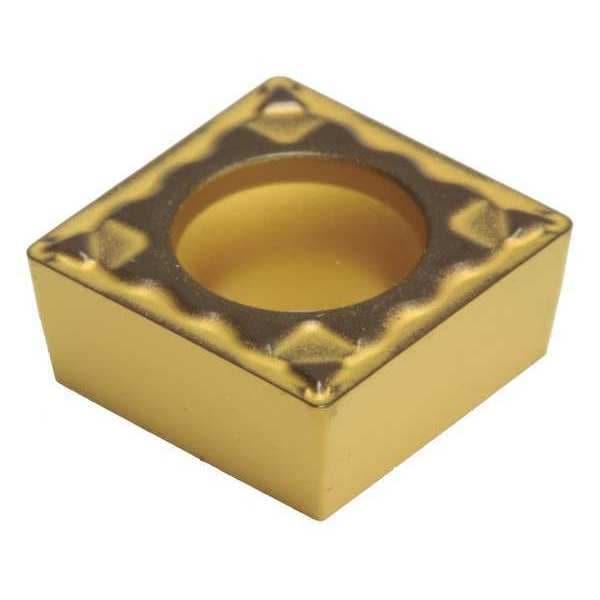

Square Turning Insert, Square, 3, SCMT, 1, Carbide

product price: $10.49
/ea
Sold in multiples of 10 for $104.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Shape Square
  • Insert Style SCMT
  • Inscribed Circle 3
  • Insert Size 32.51
  • Chip-Breaker Yes
See all product information

Product Information

Dimensions

Insert Size 32.51
Corner Radius 1
Mounting Hole Dia. 0.173"
Nose Radius 0.0156"

Details

Item Square Turning Insert
Insert Shape Square
Insert Style SCMT
Inscribed Circle 3
Chip-Breaker Yes
Grade AC810P
Workpiece Compatibility Cast Iron (K), Stainless (M), Steel (P)
Insert Material Carbide
Insert Application Finishing
Steel (P) Compatibility Yes
No. of Edges 4
Insert Thickness 0.1560"
Rake 15 Degrees
For Use With Toolholders, Boring Bars
Cast Iron (K) Compatibility Yes
Super Alloy (S) Compatibility No
Cutting Direction Neutral
ISO Number SCMT09T304NLU
Stainless (M) Compatibility Yes
Coating Cermet
Mounting Style Screw-On
Hardened (H) Compatibility No
ANSI Number SCMT32.51ELU-AC810P
Non Ferrous (N) Compatibility No
Thickness 2.5
Features Wear Resistant
Insert Holding Type Countersink Hole
Measurement System Fractional Inch
Primary Material Application Steel
ANSI Code SCMT32.51ELU
Manufacturer Grade AC810P
Finish - Machining Al203+TiCN
Material - Machining Carbide
Primary Material Application ISO Code P10
Chip-Breaker Style On One Side
Number of Cutting Edges 4
Clearance Angle 7 Degrees
Cutting Application Turning
Coating Process CVD
Chip-Breaker Code ELU
Included Angle 90 Degrees
Shape Square

Description

Square Turning Insert, Chip-Breaker Code ELU, Inscribed Circle 3/8 in, Al203+TiCN
