  11. Square Turning Insert, Square, 4, SNMG, 3, Carbide

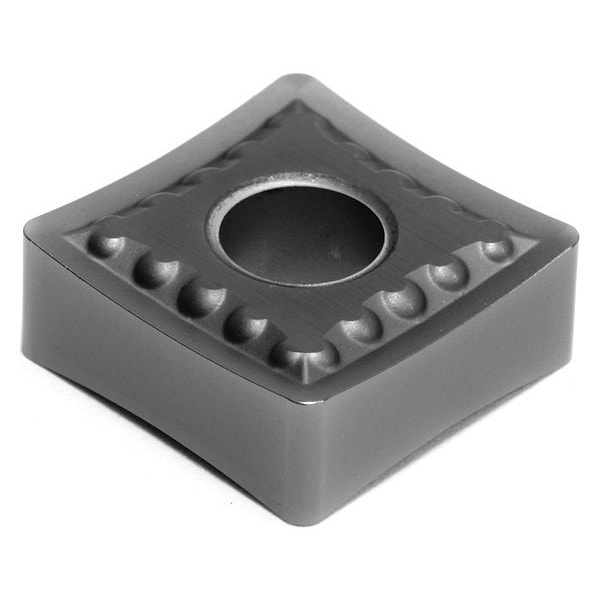

Sumitomo Square Turning Insert, Square, 4, SNMG, 3, Carbide SNMG433EUP-AC5015S - main

Square Turning Insert, Square, 4, SNMG, 3, Carbide

  • Mfr # SNMG433EUP-AC5015S

  • Zoro # G7554969

product price: $10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG433EUP-AC5015S
Zoro #
G7554969
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.187"
Nose Radius
0.046"
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC5015S
Insert Material
Carbide
Insert Application
Semi-Finishing
Rake
Negative
ISO Number
SNMG120412N-UP
Super Alloy (S) Compatibility
Yes
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Relief Angle
0 Degrees
For Use With
Toolholders, Boring Bars
Coating
PVD
No. of Edges
8
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
ANSI Number
SNMG433EUP
Hardened (H) Compatibility
No
Mounting Style
Screw
Cutting Direction
Neutral
Measurement System
Fractional Inch
Included Angle
90 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Primary Material Application ISO Code
K, M, N, P, S
Features
Wear Resistant
Shape
Square
Chip-Breaker Code
EUP
Clearance Angle
0 Degrees
Chip-Breaker Style
Double Sided
Finish - Machining
AlTiSiN
Insert Holding Type
Straight Hole
Manufacturer Grade
AC5015S
Cutting Application
Turning
Number of Cutting Edges
8
Material - Machining
Carbide
ANSI Code
SNMG433EUP
Coating Process
PVD
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code EUP, Inscribed Circle 1/2 in, AlTiSiN
