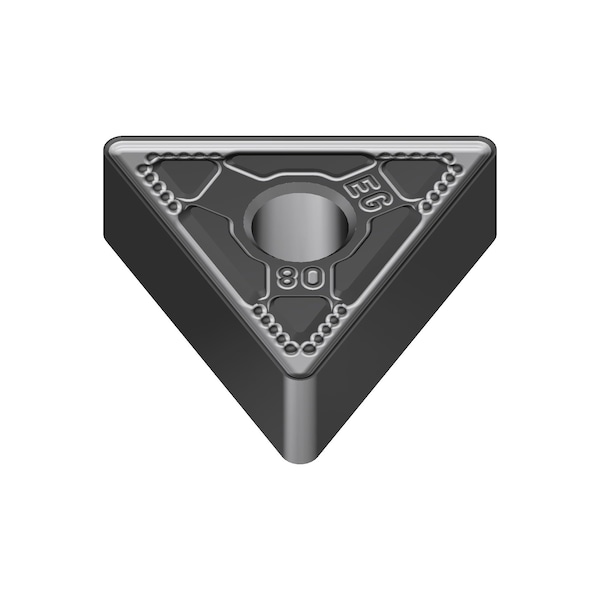

TNMG333EEG Grade AC8025P Carbide Turning Insert
Mfr # TNMG333EEG-AC8025P
Zoro # G908978545
product price:Â $13.79
/ea
Sold in multiples of 10 for $137.90
Key Features
Insert Style
TNMG
Rake
Negative
ISO Number
TNMG160412N-EG
Material Application ISO Code
P25, P30, P20
Included Angle
60 Degrees
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
TNMG333EEG-AC8025P
Zoro #
G908978545
UPC #
-
Country of Origin
Japan
Dimensions
Insert Thickness
0.1874 in
Insert Size
0.6496 in
Mounting Hole Dia.
3.81 mm
Nose Radius
0.0472 in
Details
Item
Turning Insert
Insert Style
TNMG
Rake
Negative
ISO Number
TNMG160412N-EG
Material Application ISO Code
P25, P30, P20
Included Angle
60 Degrees
Coating
Absotech
Series
AC8000P
Relief Angle
0 Degrees
Coating Process
CVD
Insert Material
Carbide
ANSI Number
TNMG333EEG-AC8025P
Chip-Breaker
Yes
Grade
AC8025P
Mounting Style
Pin and Clamp
Tolerance Class
M
Workpiece Compatibility
Steel
Inscribed Circle
3/8 in
