  11. Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Cermet

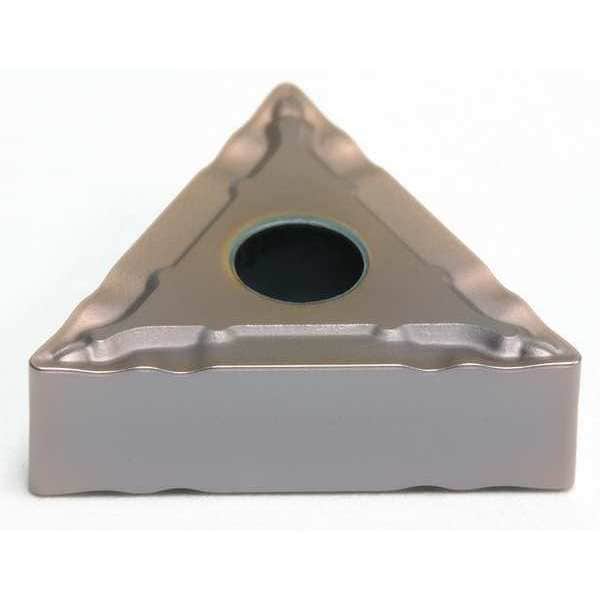

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Cermet TNMG331ESX-T1500Z - main

Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Cermet

  • Mfr # TNMG331ESX-T1500Z

  • Zoro # G6313791

product price: $6.95
/ea
Sold in multiples of 10 for $69.50

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG331ESX-T1500Z
Zoro #
G6313791
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Mounting Hole Dia.
0.150"
Nose Radius
0.0156"
Insert Thickness
0.1875"
Thickness
0.1875 in
Through Hole Inside Dia.
0.15 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Finishing
Rake
3 Degrees
ISO Number
TNMG160404N-SX
Non Ferrous (N) Compatibility
No
ANSI Number
TNMG331ESX-T1500Z
For Use With
Toolholders, Boring Bars
Cutting Direction
Neutral
Coating
Uncoated
Mounting Style
Top and hole Clamping
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
No. of Edges
3
Stainless (M) Compatibility
Yes
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Manufacturer Grade
T1500Z
Primary Material Application
Steel
ANSI Code
TNMG331ESX
Cutting Application
Turning
Primary Material Application ISO Code
P
Included Angle
60 Degrees
Number of Cutting Edges
3
Coating Process
PVD
Insert Holding Type
Straight Hole
Chip-Breaker Code
ESX
Shape
Triangle
Chip-Breaker Style
Double Sided
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Features
Excellent Wear Resistance
Material - Machining
Cermet
Material
Cermet

Description

Triangle Turning Insert, Chip-Breaker Code ESX, Inscribed Circle 3/8 in
