  11. Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0312 in, Carbide

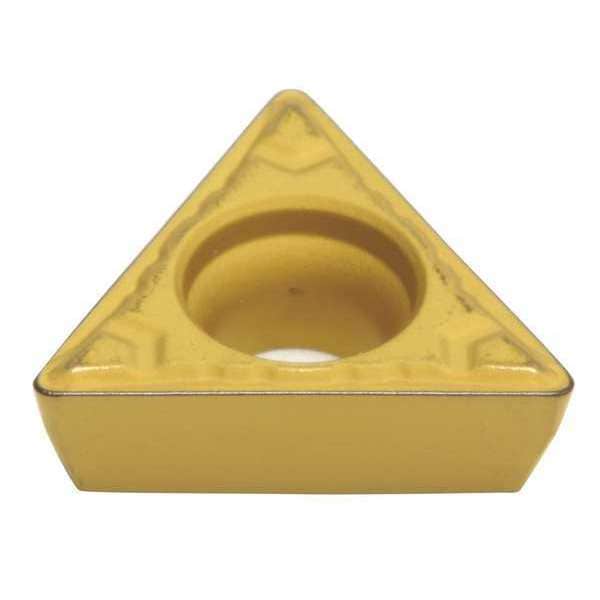

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0312 in, Carbide TPMT332EMU-AC810P - main

Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0312 in, Carbide

  • Mfr # TPMT332EMU-AC810P

  • Zoro # G6308681

product price: $8.15
/ea
Sold in multiples of 10 for $81.50

Key Features

Insert Shape
Triangle
Insert Style
TPMT
Inscribed Circle
3/8 in
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPMT332EMU-AC810P
Zoro #
G6308681
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
0.0312 in
Insert Thickness
0.1875"
Mounting Hole Dia.
0.169"
Nose Radius
0.0313"
Thickness
0.1875 in
Through Hole Inside Dia.
0.1693 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPMT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Roughing
Rake
4 Degrees
ISO Number
TPMT160408N-MU
For Use With
Toolholders, Boring Bars
ANSI Number
TPMT332EMU-AC810P
No. of Edges
3
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Cast Iron (K) Compatibility
Yes
Coating
CVD
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
No
Mounting Style
Top and hole Clamping
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Chip-Breaker Code
EMU
Included Angle
60 Degrees
Chip-Breaker Style
On One Side
Shape
Triangle
Measurement System
Fractional Inch
Number of Cutting Edges
3
Primary Material Application ISO Code
P
Insert Holding Type
Countersink Hole
Material - Machining
Carbide
Features
Excellent Wear Resistance
ANSI Code
TPMT332EMU
Coating Process
CVD
Finish - Machining
Al203+TiCN
Cutting Application
Turning
Primary Material Application
Steel
Manufacturer Grade
AC810P
Clearance Angle
11 Degrees
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code EMU, Inscribed Circle 3/8 in, Al203+TiCN
