  11. Turning Insert, Square, 0.5 in., SNMA, 2, Carbide
Sumitomo Turning Insert, Square, 0.5 in., SNMA, 2, Carbide SNMA432-AC420K - main

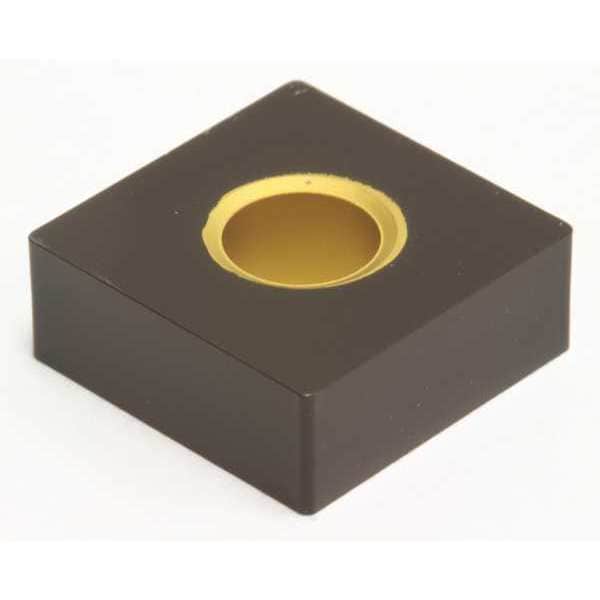

Turning Insert, Square, 0.5 in., SNMA, 2, Carbide

  • Mfr # SNMA432-AC420K

  • Zoro # G6319507

product price: $10.45
/ea
Sold in multiples of 10 for $104.50

Key Features

Insert Shape
Square
Insert Style
SNMA
Inscribed Circle
0.5 in.
Insert Size
432
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMA432-AC420K
Zoro #
G6319507
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.0313"
Thickness
3/16 in

Details

Item
Turning Insert
Insert Shape
Square
Insert Style
SNMA
Inscribed Circle
0.5 in.
Chip-Breaker
No
Grade
K20, K15, K15
Insert Material
Carbide
Insert Application
Roughing
Rake
Positive
ISO Number
SNMA120408
Mounting Style
Top and hole Clamping
Cast Iron (K) Compatibility
Yes
Coating
PCD
For Use With
Toolholders, Boring Bars
ANSI Number
SNMA432-AC420K
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K)
Stainless (M) Compatibility
No
Steel (P) Compatibility
No
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
No
No. of Edges
4
Cutting Direction
Neutral
Relief Angle
0
Primary Material Application
Cast Iron
Insert Holding Type
Straight Hole
Manufacturer Grade
AC420K
ANSI Code
SNMA432
Finish - Machining
Al203+TiCN
Coating Process
CVD
Primary Material Application ISO Code
K
Shape
Square
Cutting Application
Turning
Clearance Angle
0 Degrees
Number of Cutting Edges
4
Included Angle
90 Degrees
Material - Machining
Carbide
Measurement System
Fractional Inch
Material
Carbide
Corner Angle
90
Series
AC420K

Description

Square Turning Insert, Inscribed Circle 1/2 in, Al203+TiCN
