Shop SUMITOMO

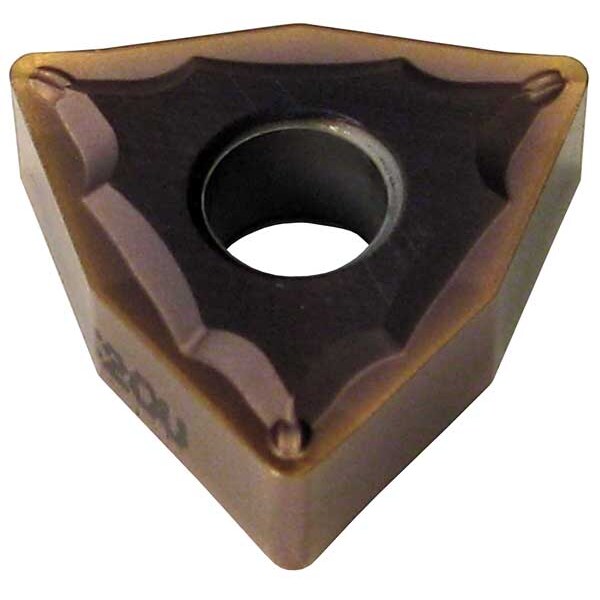

Turning Insert, Trigon, 4, WNMG, 2, Carbide

  • Mfr # WNMG432ESU-AC520U

  • Zoro # G2354348

product price:
$
11.29
/ea
Sold in multiples of 10 for $112.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
1/2 in
Insert Size
432
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WNMG432ESU-AC520U
Zoro #
G2354348
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
1/32 in
Insert Thickness
0.1875"
Nose Radius
0.0312"
Mounting Hole Dia.
0.203
Thickness
3/16 in
Through Hole Inside Dia.
0.2031 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
AC520U
Insert Material
Carbide
Insert Application
Finishing
Rake
13 Degrees
ISO Number
WNMG080408NSU
Cutting Direction
Neutral
Hardened (H) Compatibility
No
For Use With
MWLN, DWLN Toolholders, A-MWLN, D-DWLN Boring Bars
Mounting Style
Clamp
No. of Edges
6
Cast Iron (K) Compatibility
Yes
Relief Angle
0 Degrees
Coating
Super ZX TiAlN/AlCrN-PVD
Steel (P) Compatibility
No
Non Ferrous (N) Compatibility
No
ANSI Number
WNMG432ESU-AC520U
Workpiece Compatibility
Cast Iron (K), Stainless (M), Super Alloy (S)
Super Alloy (S) Compatibility
Yes
Stainless (M) Compatibility
Yes
Finish - Machining
TiAlN+AlCrN
ANSI Code
WNMG432ESU
Number of Cutting Edges
6
Insert Holding Type
Straight Hole
Material - Machining
Carbide
Chip-Breaker Style
Double Sided
Primary Material Application ISO Code
K, S
Included Angle
80 Degrees
Coating Process
PVD
Features
Excellent Fracture Resistance
Cutting Application
Turning
Manufacturer Grade
AC520U
Primary Material Application
Cast Iron, Nickel, Titanium
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Chip-Breaker Code
ESU
Shape
Trigon
Material
Carbide

Description

Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/2 in, TiAlN+AlCrN
