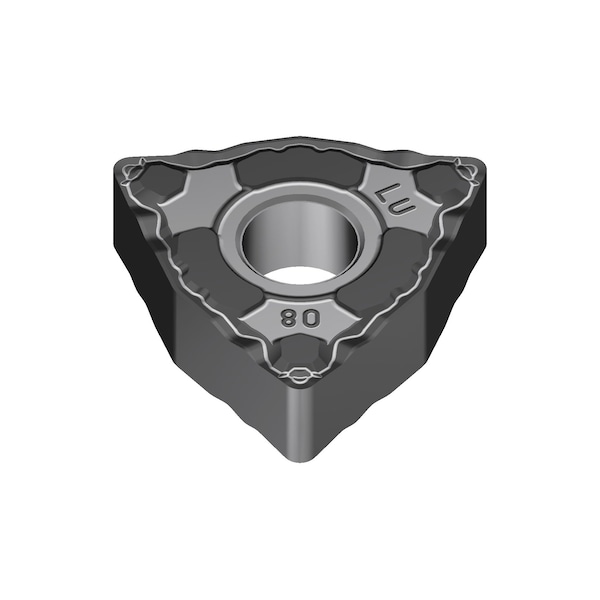

WNMG333ELU Grade AC8025P Carbide Turning Insert
Mfr # 19P7CRA
Zoro # G808979574
product price:Â $14.59
/ea
Sold in multiples of 10 for $145.90
Key Features
Insert Style
WNMG
Inscribed Circle
3/8 in
Insert Size
0.2559 in
Chip-Breaker
Yes
Grade
AC8025P
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
19P7CRA
Zoro #
G808979574
UPC #
-
Country of Origin
Japan
Dimensions
Insert Size
0.2559 in
Nose Radius
0.0472 in
Insert Thickness
0.1874 in
Mounting Hole Dia.
3.81 mm
Details
Item
Turning Insert
Insert Style
WNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Rake
Negative
ISO Number
WNMG060412N-LU
Tolerance Class
M
Workpiece Compatibility
Steel
Series
AC8000P
Mounting Style
Pin and Clamp
Relief Angle
0 Degrees
Coating
Absotech
Included Angle
80 Degrees
Coating Process
CVD
Material Application ISO Code
P25, P30, P20
ANSI Number
WNMG333ELU-AC8025P
