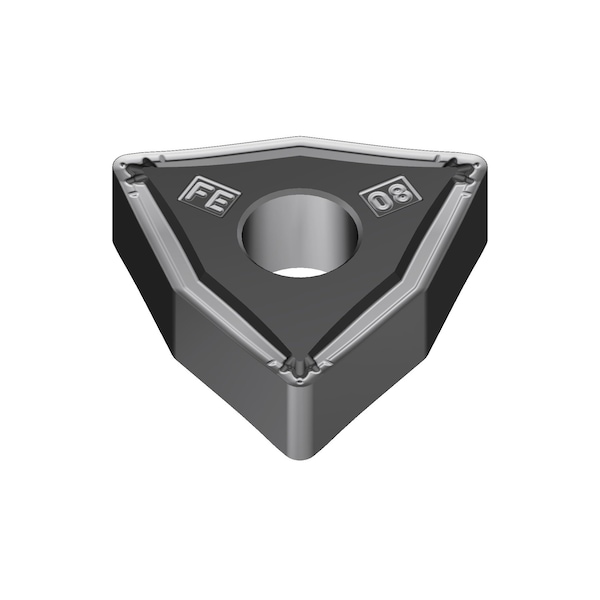

WNMG432EFE Grade AC8025P Carbide Turning Insert
Mfr # 19P7CUJ
Zoro # G208977200
product price:Â $17.69
/ea
Sold in multiples of 10 for $176.90
Key Features
Coating Process
CVD
Relief Angle
0 Degrees
Nose Radius
0.0315 in
Insert Material
Carbide
Inscribed Circle
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
19P7CUJ
Zoro #
G208977200
UPC #
-
Country of Origin
Japan
Dimensions
Nose Radius
0.0315 in
Mounting Hole Dia.
5.16 mm
Insert Thickness
0.1874 in
Insert Size
0.3425 in
Details
Coating Process
CVD
Relief Angle
0 Degrees
Insert Material
Carbide
Inscribed Circle
1/2 in
Item
Turning Insert
Grade
AC8025P
ANSI Number
WNMG432EFE-AC8025P
Rake
Negative
ISO Number
WNMG080408N-FE
Series
AC8000P
Mounting Style
Pin and Clamp
Coating
Absotech
Material Application ISO Code
P25, P30, P20
Workpiece Compatibility
Steel
Chip-Breaker
Yes
Tolerance Class
M
Insert Style
WNMG
Included Angle
80 Degrees
