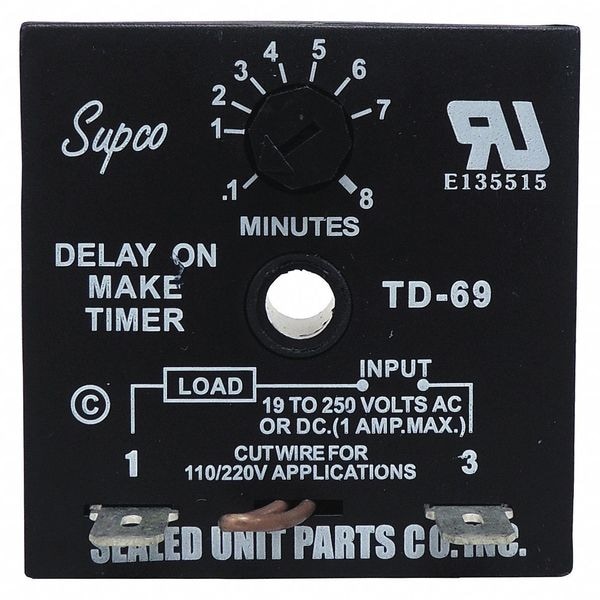

Single Function Encapsulated Timing Relay, Square, On Delay, 1 Functions 250V AC, SPST-NO
- Mfr # TD69
- Zoro # G0749633
CAD Available
product price:Â
$
11.69
/ea
Key Features
CAD Drawing
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
6 sec
Maximum Time Setting
8 min
Base Shape
Square
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TD69
- Zoro #
- G0749633
- UPC #
- 687152034314
- Country of Origin
- China
Dimensions
- Overall Height - Relay
- 1.0 in
- Body Height
- 0.75 in
- Flat Pin Width
- 0.25 in
- Overall Depth
- 1 in
- Body Width
- 2 in
- Body Depth
- 2 in
Description
Single Function Encapsulated Timing Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 250V AC, Contact Form SPST-NO, Contact Rating (AC) 1 A @ 19 to 250V, Contact Rating (DC) 1 A @ 19 to 250V, Current Rating 1 A, Number of Delay Functions 1, Delay Function Delay On Make, Electrical Connection Push-On, Flat Pin Width 0.25 in, IP Rating Not Applicable, Input Voltage 19 to 250V AC/DC, Minimum Time Setting 6 sec, Maximum Time Setting 8 min, Number of Pins 2, Sealing Enclosed
