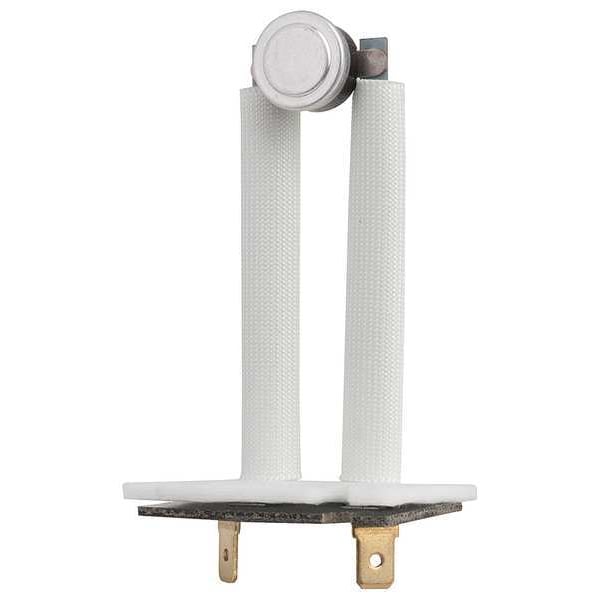

Thermostat, Limit & Plenum, Range 170-150F

  • Mfr # SHL512
  • Zoro # G1577615
product price:
$
19.49
/ea

Key Features

Temp. Range (F)
Not Available
Type
Fixed Temp, Auto Reset Plenum Mount
Switch Type
SPST
Width (In.)
1 5/8 in
Height (In.)
1 7/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SHL512
Zoro #
G1577615
UPC #
687152151271
Country of Origin
Mexico

Dimensions

Width (In.)
1 5/8 in
Height (In.)
1 7/16 in
Element Insertion Length (In.)
3 1/8 in
Overall Width
1 5/8 in
Overall Height
1 1/2 in
Insertion Length
3 1/8 in

Details

Item
Plenum Thermostat
Temp. Range (F)
Not Available
Type
Fixed Temp, Auto Reset Plenum Mount
Switch Type
SPST
Switch Closes @ (F)
150 Degrees F
Switch Opens @ (F)
170 Degrees F
Voltage Range
120V, 240V, 480V
Resistive Amps @ 120V
15 A
Resistive Rating 240V
10 A
Element Type
Insertion
Circuit #2 Switch Opens @ (F)
Not Available
Circuit #1 Switch Closes @ (F)
150 Degrees F
Differential
20 Degrees F
Switch Action
Open on Rise
Fan On Temp. (F)
Not Available
Circuit #2 Switch Closes @ (F)
Not Available
Circuit #1 Switch Opens @ (F)
170 Degrees F
Inductive Amps @ 120V
3 A
Fan Off Temp. (F)
Not Available
Inductive Amps @ 240V
1.5 A
Contact Form
SPST
Reset Type
Automatic Reset
Resistive Amps @ 240V AC
10 A
Mounting
Board Mount
Resistive Amps @ 120V AC
15 A
Input Voltage
120V AC, 240V AC
Series
SHL
Switch Opening Temperature
170 Degrees F
Application
Limit Control
Standards
UL Listed
Switch Closing Temperature
150 Degrees F
Product Type
Plenum Thermostat

Description

Plenum Thermostat, Product Type Plenum Thermostat, Application Limit Control, Contact Form SPST, Switch Action Open on Rise, Switch Opening Temperature 170 Degrees F, Switch Closing Temperature 150 Degrees F, Insertion Length 3 1/8 in, Input Voltage 120V AC, 240V AC, Overall Height 1 1/2 in, Overall Width 1 5/8 in, Series SHL, Reset Type Automatic Reset, Element Type Insertion, Resistive Amps @ 120V AC 15 A, Resistive Amps @ 240V AC 10 A, Inductive Amps @ 120V 3 A, Inductive Amps @ 240V 1.5 A
