  11. Surge Protection Device, 1 Phase, 120V AC

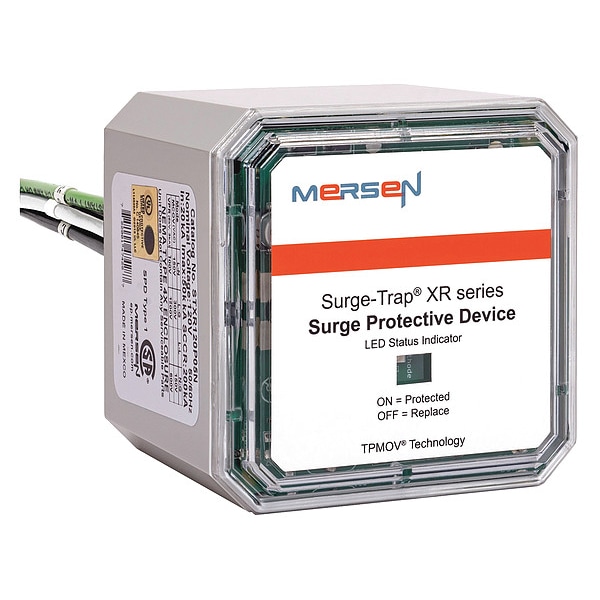

Surge Trap Surge Protection Device, 1 Phase, 120V AC STXR120P05N - main

Surge Protection Device, 1 Phase, 120V AC

  • Mfr # STXR120P05N

  • Zoro # G5524645

product price: $153.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Chase Nipple/Panel
Phase
1
Voltage
120V AC
Voltage Protection Rating
1200V (L-G), 600V (N-G), 700V (L-N)
Modes of Protection
L-G, L-N, N-G
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STXR120P05N
Zoro #
G5524645
UPC #
782001474294
Country of Origin
Mexico

Dimensions

Length
3.35 in
Depth
4 in
Width
3.35 in
Chase Nipple Size
3/4 in

Details

Item
Surge Protection Device
Mounting Style
Chase Nipple/Panel
Phase
1
Voltage
120V AC
Voltage Protection Rating
1200V (L-G), 600V (N-G), 700V (L-N)
Modes of Protection
L-G, L-N, N-G
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 A
Short Circuit Current Rating
200kA
Modular
No
Filtering
No
Max. Continuing Operating Voltage
150V AC
Enclosure NEMA Rating
NEMA 4X
Enclosure Material
Polycarbonate
Wire Gauge
10 AWG
Modular / Nonmodular
Nonmodular
Standards
ANSI, UL Listed CSA Approved, RoHS, Type 1 or 2
Min. Operating Temp.
-40 Degrees F
Max. Operating Temp.
185 Degrees F
UL SPD Type
Type 1/2
System Connection
Parallel
Color
Gray
Basic Material
Nonmetallic
Includes Surge Counter
No
Installation Mounting
Panel Mount
Max Storage Temp
85 °C
Mcov L-G
300 V
Flammability Rating
UL94-5VA
Wire Connections
Pre-wired
Ac Or Dc
AC
Housing Material
Polycarbonate
Protection Modes
L-G, L-N, N-G
Mcov L-N
150 V
Max Operating Temp
85 °C
Mcov N-G
150 V
Min Storage Temp
-40 °C
Min Operating Temp
-40 °C
Max Discharge Current Imax 8 20
50 kA per phase
System Configuration
Single Phase
Frequency Hz
50/60 Hz
Includes
LED Ind

Description

Surge Protection Device, Nonmetallic, Chase Nipple Size 3/4 in, Gray, Depth 4 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X
