  9. 1" 2 SPDT Flow Switch 24/125/250VAC 1500 gpm

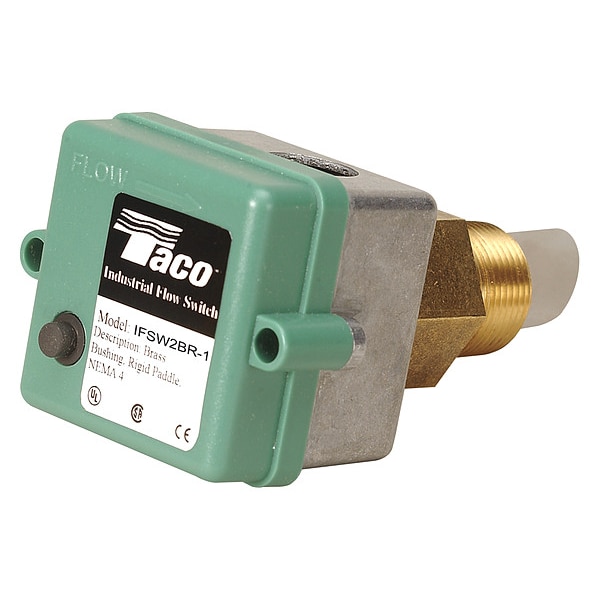

Taco 1" 2 SPDT Flow Switch 24/125/250VAC 1500 gpm IFSW2BR-1 - main

1" 2 SPDT Flow Switch 24/125/250VAC 1500 gpm

  • Mfr # IFSW2BR-1

  • Zoro # G6088476

product price: $389.47
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1
Switch Type
SPDT
Voltage
24/125/250VAC
Max. Pressure
250 psi
Max. Flow GPM
1,500 gpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IFSW2BR-1
Zoro #
G6088476
UPC #
687752299380
Country of Origin
United States

Dimensions

Connection Size (In.)
1
Overall Length
3.5 in
Connection Size
1 in
Overall Height
4.7 in
Overall Width
3.7 in
For Pipe Size
1 in

Details

Switch Type
SPDT
Voltage
24/125/250VAC
Max. Pressure
250 psi
Max. Flow GPM
1,500 gpm
Item
Flow Switch
Max. HP
1/8 to 1/4
Contact Rating
15A at 125/250V AC
Min. Fluid Temp. (F)
32 Degrees F
Max. Operating Velocity (FPM)
600 fpm
Operating Velocity Range (FPM)
3.5 to 600
Phase
Single
Type
Industrial
Wetted Materials
Brass, EPDM, Fluorosilicone, Stainless Steel
Min. Ambient Temp. (F)
32 Degrees
Application
This Switch Can Serve As A Way to Start and Stop Electrically Operated Equipment When a Flow or No-Flow Condition Occurs in A Variety of Applications
Max. Pressure (PSI)
250 psi
Switch Enclosure
NEMA 4
Hz
60
Float Switch Contact Form
SPDT
Material of Construction
Brass, EPDM, Fluorosilicone, Stainless Steel
Max. Fluid Temp. (F)
250 Degrees F
Max. Ambient Temp. (F)
176 Degrees F
Flow Rate
Flow Decrease 3.5 to 7 gpm, Flow Increase 4.5 to 9.5 gpm
Min. Flow Rate (GPM)
4.5 gpm
Body Material
Brass
Compliance
CE, CSA, UL
Standards
CE Certified, CSA Certified, UL Listed
Nameplate Voltage
125V
Housing Material
Brass
Connection Type
NPT
Switch Position
Normally Open
Set Point Configuration
Adjustable
Wetted Material
Brass, EPDM, Fluorosilicone, Stainless Steel
Flow Rate - Maximum
1,500 gpm
Contact Rating (AC)
15 A @ 125/250V
Ambient Temperature - Maximum
176 Degrees F
Flow Switch Type
Paddle
Contact Rating (DC)
15A @125/250VAC
Frequency
60 Hz
Media Temperature - Maximum
250 Degrees F
Flow Rate - Minimum
4.5 gpm
Media Temperature - Minimum
32 Degrees F

Description

Flow Switch, Ambient Temperature - Maximum 176 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 15 A @ 125/250V, Contact Rating (DC) 15A @125/250VAC, Filter Rating - Maximum Not Applicable, Flow Rate - Maximum 1,500 gpm, Flow Rate - Minimum 4.5 gpm, Flow Switch Type Paddle, For Pipe Size 1 in, Frequency 60 Hz, Hazardous Location Specification Not Applicable, Housing Material Brass, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
