Shop FLOMEC

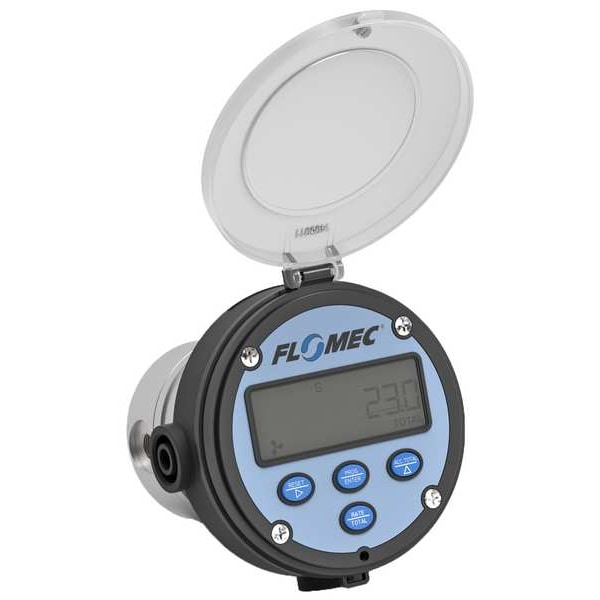

Electronic Flowmeter, 1/8", FNPT, 4" L

  • Mfr # OM004A511-822R5G

  • Zoro # G700690089

product price:
$
1,498.00
/ea
Free Shipping & Returns

Key Features

Housing Material
Noryl
Type
Oval Gear
For Pipe Size
1/8 in
Connection Size
1/8 in
Flow Material
High Viscosity, Lubricants, Oil, Thick Fluids
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
OM004A511-822R5G
Zoro #
G700690089
UPC #
-
Country of Origin
Australia
Item
Electronic Flowmeter
Housing Material
Noryl
Type
Oval Gear
Flow Material
High Viscosity, Lubricants, Oil, Thick Fluids
Connection Type
FNPT
Max. Pressure
220 psi
Max. Viscosity
1,000 cps
Wetted Materials
Aluminum, Ceramic, FKM, Stainless Steel
Frequency Range (Hz)
0.78 to 28
Flow Range
0.26 to 9.5 gph
Fluid Temp. Range
-22 Degrees to 176 Degrees F
Standards
CE Certified, NSF
Power Requirement
8 to 24 V DC
Accuracy (%)
+/- 1.0
Flow Range (LPM)
0.0167 to 0.6
O-Ring
FKM
Display Units
gal
Flow Range @ GPH
0.26 to 9.5
Shaft Material
Stainless Steel
Flow Range (GPM)
0.0043 to 0.158
Display Type
Digital
Sensor Type
Oval Gear
Seal Material
Buna-N
Rotor Type
Stainless Steel Oval Gears
Output Type
4-20 mA
Operating Pressure - Maximum
220 psi
Includes Totalizer
Yes
Compatible Flow Material
Fuels
Wetted Material
316 Stainless Steel, Aluminum, Ceramic, Viton, Stainless Steel
Media Temperature - Maximum
250 Degrees F
Flow Rate - Minimum
0.13 gph
Frequency - Maximum
150 Hz
Media Temperature - Minimum
5 Degrees F
Accuracy
+/-0.5%
Flow Rate - Maximum
9.5 gph
O-Ring Material
EPDM
Voltage - Maximum
36V DC
Frequency - Minimum
5 Hz
Viscosity - Maximum
1,000 cps
Rotor Material
Stainless Steel
Flowmeter Type
Electromagnetic
Product Type
Oval Gear Flow Meter

Description

Electronic Flowmeter, Product Type Oval Gear Flow Meter, Flowmeter Type Electromagnetic, Accuracy +/-0.5 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Fuels, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 5 Degrees F, Viscosity - Maximum 1,000 cps, Voltage - Maximum 36V DC, Housing Material Noryl, Rotor Material Stainless Steel, O-Ring Material EPDM, Seal Material Buna-N, Shaft Material Stainless Steel
