Shop All Variable Pitch V-Belt Pulleys
Tb Woods

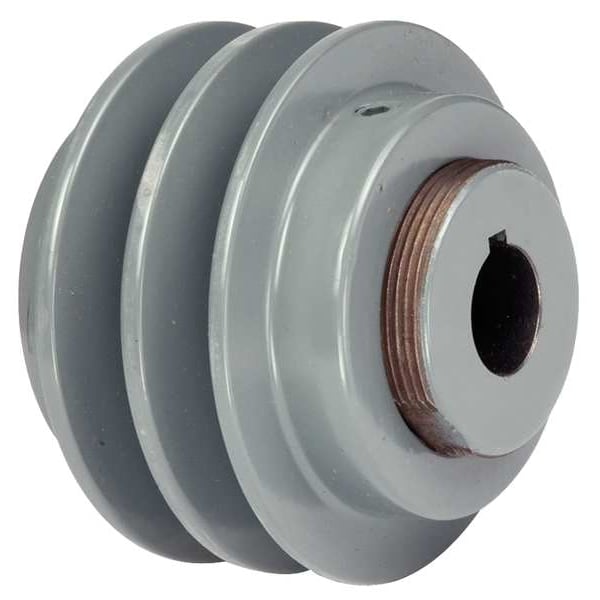

7/8" Fixed Bore 2 Groove Variable Pitch Pulley 5.35" OD
Mfr # 2VP5678
Zoro # G1009197
original price:
$85.89
10% off
Free Shipping & Returns
$77.29
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Number of Grooves 2
- Pulley Outside Dia. 5.35 in
- Pulley Bore Type Fixed Bore
- Industry Number 2VP5678
- Construction Solid
Product Information
- Brand Tb Woods
- MFR # 2VP5678
- Zoro # G1009197
- UPC # 698672025683
- Country of Origin Multiple
- Category Variable Pitch V-Belt Pulleys
Dimensions
Pulley Outside Dia. | 5.35 in |
5L, B, or BX Belt Pitch Dia. | 4.55 in to 5.37 in |
Keyway Size | 0.187" x 0.093" |
Keyway Size Type | 0.187 in x 0.093 in |
3L Belt Pitch Dia. | 3.86 in to 4.78 in |
Pulley Bore Dia. | 7/8 in |
Fits Shaft Dia. | 7/8 in |
4L, A, or AX Belt Pitch Dia. | 3.99 in to 5.22 in |
5L Pitch Diameter (Minimum) | 4.3 in |
B Pitch Diameter (Minimum) | 4.3 in |
Maximum Pitch Diameter | 4.7 in (3L), 5 in (4L, A), 5.3 in (5L, B) |
BX Pitch Diameter (Maximum) | 5.3 in |
4L Pitch Diameter (Maximum) | 5 in |
Keyway Depth | 3/32 in |
Minimum Pitch Diameter | 3.9 in (3L), 4 in (4L, A), 4.3 in (5L, B) |
B Pitch Diameter (Maximum) | 5.3 in |
3L Pitch Diameter (Maximum) | 4.7 in |
AX Pitch Diameter (Maximum) | 5 in |
Outside Diameter | 5.35 in |
AX Pitch Diameter (Minimum) | 4 in |
A Pitch Diameter (Maximum) | 5 in |
Bore Diameter | 7/8 in |
A Pitch Diameter (Minimum) | 4 in |
3L Pitch Diameter (Minimum) | 3.9 in |
4L Pitch Diameter (Minimum) | 4 in |
5L Pitch Diameter (Maximum) | 5.3 in |
BX Pitch Diameter (Minimum) | 4.3 in |
For Belt Trade Size | 3L, 4L, 5L, A, AX, B, BX |
Keyway Width | 3/16 in |
Minimum Face Width | 1.375 in |
Overall Width | 3 in |
Maximum Face Width | 2.125 in |
Length through Bore | 3 in |
Details
Description
Variable Pitch V-Belt Pulley, Bore Diameter 7/8 in, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Banded, Classical, Cogged, Material Cast Iron, Maximum Pitch Diameter 4.7 in (3L), 5 in (4L, A), 5.3 in (5L, B), Number of Grooves 2, Outside Diameter 5.35 in, 3L Pitch Diameter (Maximum) 4.7 in, 3L Pitch Diameter (Minimum) 3.9 in, 3V Pitch Diameter (Maximum) Not Applicable, 3V Pitch Diameter (Minimum) Not Applicable, 3VX Pitch Diameter (Maximum) Not Applicable
