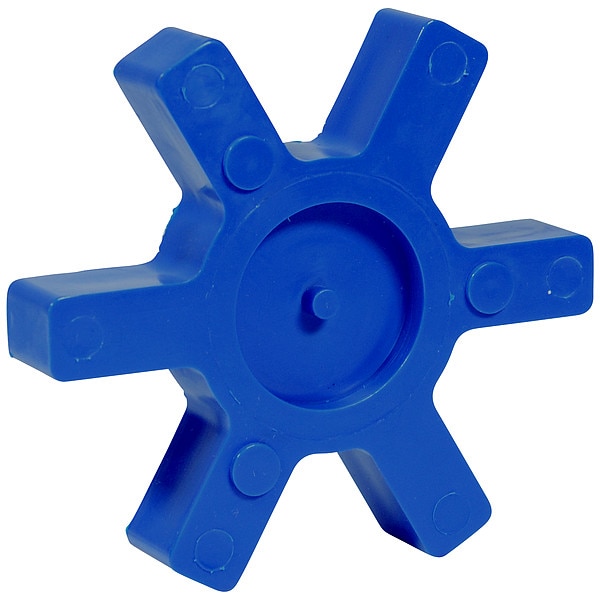

Tb Woods L-Jaw Coupling Insert, L225, Urethane L225U - main

L-Jaw Coupling Insert, L225, Urethane

  • Mfr # L225U

  • Zoro # G1352005

product price: $101.99
/ea
Free Shipping & Returns

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L225
Material - Spiders
Urethane
Rated Torque
3,510 in-lb
Max. RPM
4,600 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L225U
Zoro #
G1352005
UPC #
698672000284
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L225
Length (In.)
4.97 in
Width (In.)
4.97 in
Shaft Dia. Range (In.)
3/4 to 2 5/8
Height (In.)
0.88 in
Coupling Size
L225
Spider Width
0.88 in
Outside Diameter
4 31/32 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Urethane
Rated Torque
3,510 in-lb
Max. RPM
4,600 RPM
HP Rating @ 100 RPM
5.60
Temp. Range
-30 Degrees to 160 Degrees F
Max. Bore (In.)
2.62
Serviceable Temp. Range (F)
-30 to 160
Color
Blue
Accommodates
1 Degrees Angular and 0.015 in of Parallel Misalignment
Type
Urethane Spider
Max. Torque (In.-Lbs.)
3510
Item
Urethane Spider Insert
HP Rating @ 3450 RPM
192.14 hp
HP Rating @ 690 RPM
38.43 hp
Coupling Weight (Lb.)
0.35
HP Rating @ 50 RPM
2.78 hp
HP Rating @ 870 RPM
48.45 hp
HP Rating @ 1800 RPM
100
HP Rating @ 1150 RPM
64.05 hp
HP Rating @ 1750 RPM
97.46 hp
HP Rating @ 3600 RPM
200
HP Rating @ 300 RPM
16
Torque (In.-Lbs.)
3510
HP Rating @ 1200 RPM
66
Max. Parallel Misalignment (In.)
0.015 in
Application
Blowers, Compressors, Generators, Pumps
Maximum Operating Temperature
160 Degrees F
Number of Teeth
6
Parallel Misalignment
0.015 in
Spider Type
Solid Center Spider
Horsepower @ 100 RPM
5.6 hp
System of Measurement
Inch
Durometer Hardness
90A
Zero Backlash
No
Maximum Speed
4,600 RPM
Horsepower @ RPM
101 hp @ 1800 RPM, 201 hp @ 3600 RPM, 68 hp @ 1200 RPM
Angular Misalignment
1 Degrees
Maximum Torque
3,510 in-lb
Spider Material
Polyurethane
Compatible Hub Manufacturer Part Number
L225
Fail Safe
Yes
Resistance Properties
Chemical Resistant, Oil Resistant
For Misalignment Type
Angular, Parallel
For Maximum Hub Bore
2 5/8 in
Minimum Operating Temperature
-30 Degrees F
Working Torque
3,510 in-lb

Description

Urethane Spider Insert, Coupling Size L225, Outside Diameter 4 31/32 in, System of Measurement Inch, Maximum Speed 4,600 RPM, Horsepower @ 100 RPM 5.6 hp, Spider Material Polyurethane, Maximum Torque 3,510 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 90A, Angular Misalignment 1 Degrees , Application Blowers, Compressors, Generators, Pumps, Color Blue, Compatible Hub Manufacturer Part Number L225, Fail Safe Yes, For Maximum Hub Bore 2 5/8 in, For Misalignment Type Angular, Parallel
