  11. 014 DIP PLUG 100CL TIN

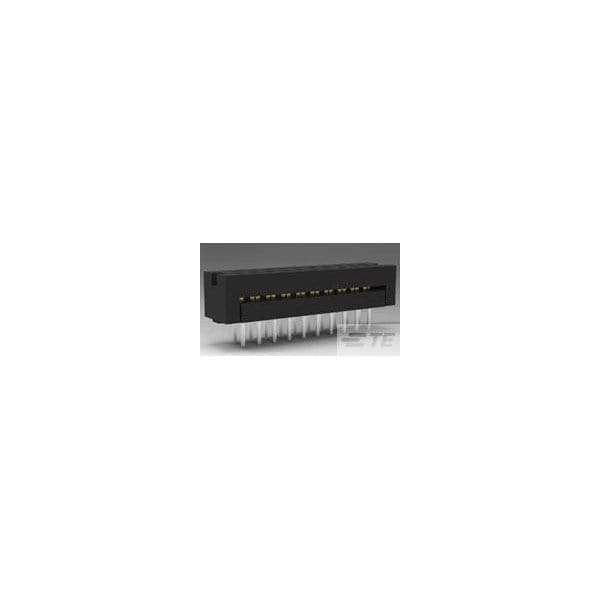

Te Connectivity 014 DIP PLUG 100CL TIN 746610-2 - main

014 DIP PLUG 100CL TIN

  • Mfr # 746610-2

  • Zoro # G400946981

product price: $1.79
/ea
Sold in multiples of 100 for $179.00

Key Features

Color
Black
Min. Single Wire Size
30 AWG
Insulation Material
Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
746610-2
Zoro #
G400946981
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
30 AWG
Width
0.278 in
Height
6.43 mm
Max. Insulation Dia.
1.07 mm
Length
22.35 mm
Max. Single Wire Size
26 AWG
Contact Plating Thickness
2.54 µm
Minimum Single Wire Size
30 AWG
Maximum Single Wire Size
26 AWG

Details

Item
Connector
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Max. Temp.
105°C
Connection Material
Phosphor Bronze
Connector Type
Plug
Material
Thermoplastic
Hole Center to Center
2.54 mm
Wire Type
Solid or Stranded
Current Rating
1 A
Number of Contacts
14
Number of Rows
2
Contact Type
Pin
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
