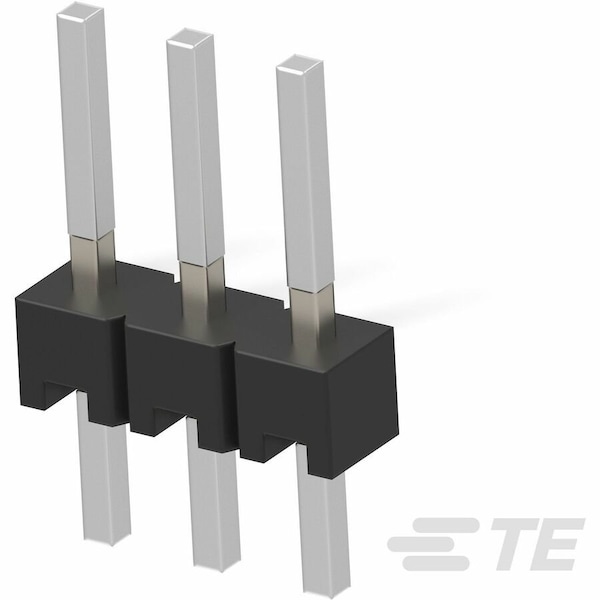

03 MODII HDR SRST B/A .100CL
- Mfr # 5-146282-3
- Zoro # G000940372
product price:Â
$
0.43
/ea
Sold in multiples of 313 for
$134.59
Key Features
Type
Breakaway
Color
Black
Insulation Material
Liquid Crystal Polymer
Current
3 A
Standards
UL E28476; CSA LR7189
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5-146282-3
- Zoro #
- G000940372
- UPC #
- -
- Country of Origin
- Mexico
Details
- Item
- PCB Mount Header
- Type
- Breakaway
- Color
- Black
- Insulation Material
- Liquid Crystal Polymer
- Current
- 3 A
- Standards
- UL E28476; CSA LR7189
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Material
- Liquid Crystal Polymer
- Terminal Type
- Through Hole
- Hole Center to Center
- 2.54 mm
- Max. Temp.
- 105°C
- Connection Material
- Copper Alloy
- Contact Finish
- Tin Plated
- Contact Type
- Pin
- Current Rating
- 3 A
- Number of Contacts
- 3
- Number of Rows
- 1
- Connector Terminates To
- Printed Circuit Board
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Tin Plated
