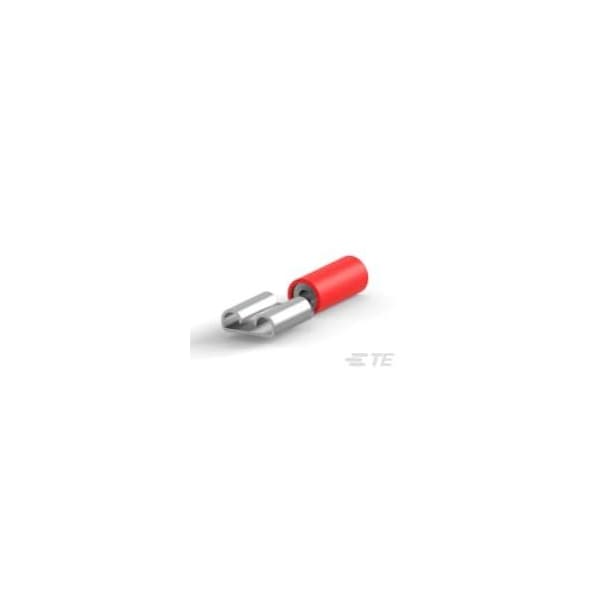

250 PIDG FASTON REC
- Mfr # 9-160583-2
- Zoro # G100976288
product price:Â
$
0.67
/ea
Sold in multiples of 136 for $91.12
Key Features
Wire Size
.3-1.5 mm2
Overall Length
.874 in
Terminal Type
Receptacle
Plating Material
Tin
FASTON
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9-160583-2
- Zoro #
- G100976288
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Wire Size
- .3-1.5 mm2
- Overall Length
- .874 in
- Mating Tab Thickness
- .032 in
- Wire Insulation Diameter (Max)
- .14 in
- Mating Tab Width
- .25 in
Details
- Terminal Type
- Receptacle
- Plating Material
- Tin
- FASTON
- Yes
- Disconnect Type
- Quick Disconnect
- Barrel Color
- Red
- Insertion Force
- Normal
- Fully Insulated
- No
- Crimp Type
- Tab-Lok
- Insulated
- Yes
- Connection Capacity
- Single
- Terminal Orientation
- Straight
- Voltage (Max)
- 300 V
- Terminates To
- Wire & Cable
- Wire Insulation Support
- With
- Insulation Material
- Nylon
- Mating Retention Type
- Dimple
