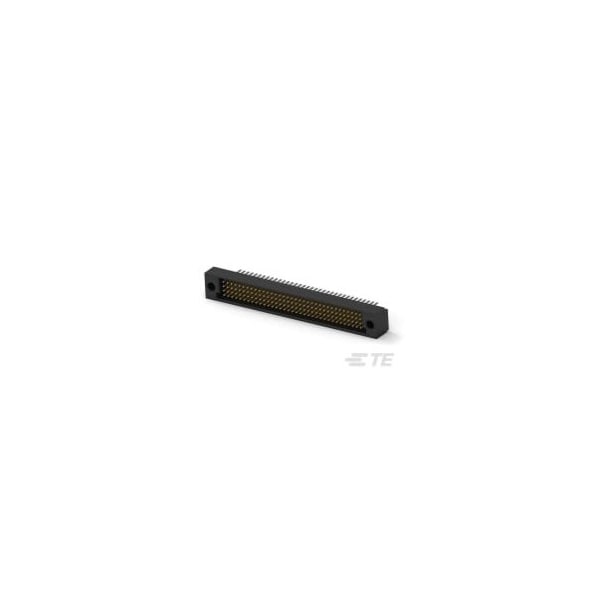

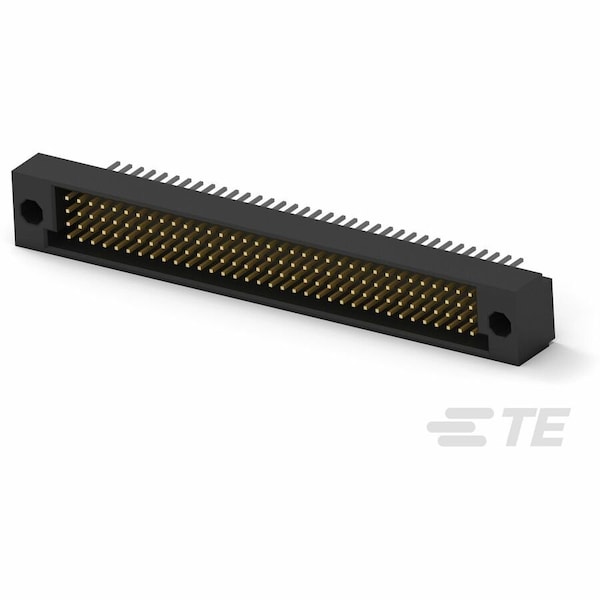

ASSY PIN VERTICAL HDI LEAD-FRE
Mfr # 5532448-4
Zoro # G001043409
product price:Â
$
71.65
/ea
Sold in multiples of 5 for $358.25
Key Features
Max. Temp.
125°C
Application
Signal; High Temperature
Height
11.73 mm
Material
Thermoplastic
Connection Material
Phosphor Bronze
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5532448-4
- Zoro #
- G001043409
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Height
- 11.73 mm
- Contact Plating Thickness
- 0.76 µm
Details
- Item
- PCB Mount Header
- Max. Temp.
- 125°C
- Application
- Signal; High Temperature
- Material
- Thermoplastic
- Connection Material
- Phosphor Bronze
- Connector Terminates To
- Printed Circuit Board
- Terminal Type
- Through Hole
- Contact Type
- Pin
- Number of Rows
- 4
- Flammability Rating
- UL 94 V-0
- Contact Finish
- Gold Plated
- Terminal Finish
- Tin Plated
- Number of Contacts
- 140
- Hole Center to Center
- 2.54 mm
- Current Rating
- 3 A
