  11. DYNAMIC D2100 HDR V ASSY 20P

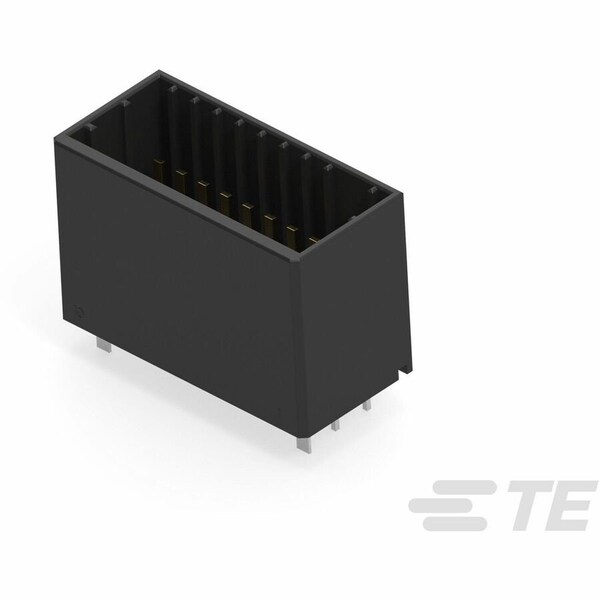

Te Connectivity DYNAMIC D2100 HDR V ASSY 20P 1318127-1 - main

DYNAMIC D2100 HDR V ASSY 20P

  • Mfr # 1318127-1

  • Zoro # G700937429

product price: $8.29
/ea
Sold in multiples of 17 for $140.93

Key Features

Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
5 A
Series
2000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1318127-1
Zoro #
G700937429
UPC #
-
Country of Origin
China

Dimensions

Width
0.519 in
Height
17.79 mm
Length
1.09 in

Details

Item
Connector
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
5 A
Series
2000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
For Use With
Receptacle Housing
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Connector Type
Header
Features
Shrouded
Material
Glass-Filled Polyester
Green Environmental Attribute
Halogen Free
Hole Center to Center
0.098 in
Current Rating
5 A
Number of Contacts
20
Contact Finish
Gold Plated
Contact Type
Tab
Number of Rows
2
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
