Shop TE CONNECTIVITY

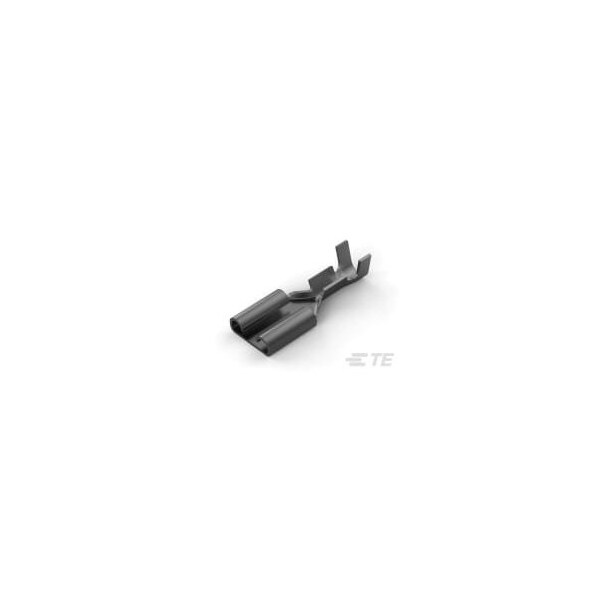

FASTON 250 RECEPTACLE 22-18 AWG TPBR

  • Mfr # 170183-2
  • Zoro # G900965604
product price:
$
0.16
/ea
Sold in multiples of 5000 for $800.00

Key Features

Wire Size
22 - 18 AWG
Overall Length
.748 in
Terminal Type
Receptacle
Mating Tab Thickness
.032 in
UL Rating
Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
170183-2
Zoro #
G900965604
UPC #
-
Country of Origin
China

Dimensions

Wire Size
22 - 18 AWG
Overall Length
.748 in
Mating Tab Thickness
.032 in
Wire Insulation Diameter (Max)
.13 in
Mating Tab Width
.25 in
Receptacle Stock Thickness
.016 in
Accepts Wire Insulation Diameter Range
.09 - .13 in

Details

Terminal Type
Receptacle
UL Rating
Listed
Contact Base Material
Brass
Terminates To
Wire & Cable
Discrete Wire Type
Stranded
Operating Temperature Range
59 95 °F
Barrel Type
Open
Insertion Force
Normal
Disconnect Type
Quick Connect
Wire Insulation Support
With
Mating Retention Type
Dimple
Terminal Orientation
Straight
Connection Capacity
Single
Plating Material
Tin
Wire/Cable Type
Discrete Wire
Terminal & Splice Style
Receptacle
CSA Certified
Yes
Fully Insulated
No
FASTON
Yes
Crimp Type
F-Crimp

Documents & Resources
