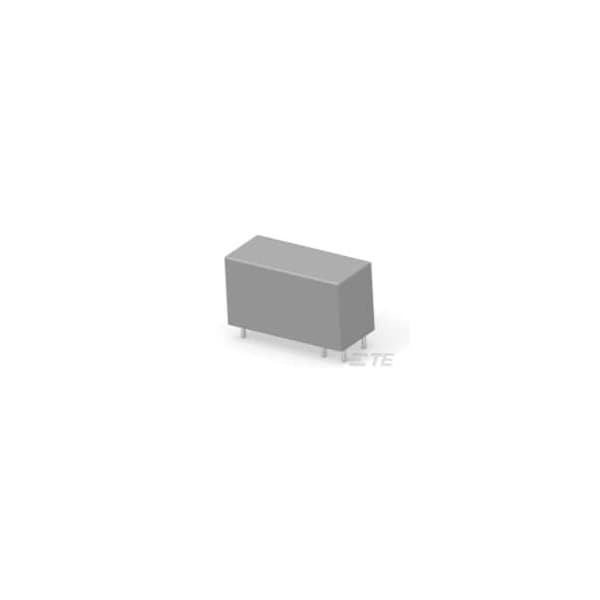

Te Connectivity PCB, PCB Relay, 16 A, PCB 9-1415047-1 - main

PCB, PCB Relay, 16 A, PCB

  • Mfr # 9-1415047-1

  • Zoro # G901026519

product price:  $4.15
/ea
Sold in multiples of 20 for $83.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
24V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9-1415047-1
Zoro #
G901026519
UPC #
-
Country of Origin
Austria

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
24V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Power Consumption - Relay
400 mW
Number of Poles
1
Protection Category
RTII
Contact Voltage Rating
250V AC
Contact Limiting Continuous Current
26A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Insulation Creepage
10 mm [ .394 in ]
Contact Limiting Breaking Current
16A
Contact Limiting Making Current
30A
Operating Temp. Range
85 to 105°C
Contact Limiting Short-Time Current
16A
Contact Rating
16A
Insulation Clearance
10 mm [ .394 in ]
Coil Type
Monostable, DC
Coil Resistance
1440 Ω
Switching Voltage
400V AC
Number of Pins
6
Contact Form
SPST-NO

Description
