Shop TE CONNECTIVITY

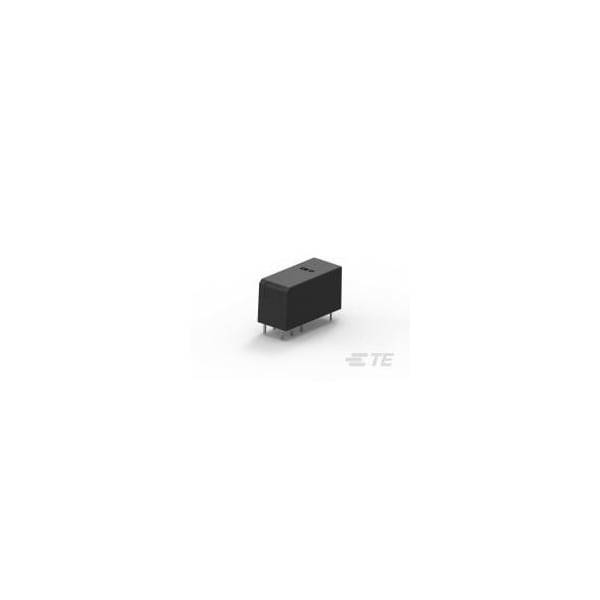

PCB, Power Relay, 16 A, 1 Pins, PCB

  • Mfr # 3-2158100-4

  • Zoro # G801026763

product price:
$
1.75
/ea
Sold in multiples of 60 for $105.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Number of Pins
5
Coil Voltage
12V DC
Current Rating
16 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-2158100-4
Zoro #
G801026763
UPC #
-
Country of Origin
Austria

Dimensions

Dimensions
29 x 12.7 x 15.7 mm

Details

Item
Power Relay
Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Number of Pins
5
Coil Voltage
12V DC
Current Rating
16 A
Contact Rating (DC)
16 A @ 300V
Power Consumption - Relay
0.53W
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Number of Poles
1
Contact Rating
16 A
Contact Voltage Rating
300 VDC, 250 VAC
Contact Limiting Short-Time Current
30 A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Protection Category
RTII
Contact Limiting Making Current
16 A
Operating Temp. Range
50 to 70°C
Switching Current
100mA @ 12V
Coil Resistance
272 Ω
Switching Voltage
400 VAC
Contact Limiting Breaking Current
16 A
Coil Type
Monostable, DC
Insulation Clearance
.394 in
Insulation Creepage
.394 in
Contact Limiting Continuous Current
16 A
Contact Form
1 Form C (1 CO)
Base Shape
Square
