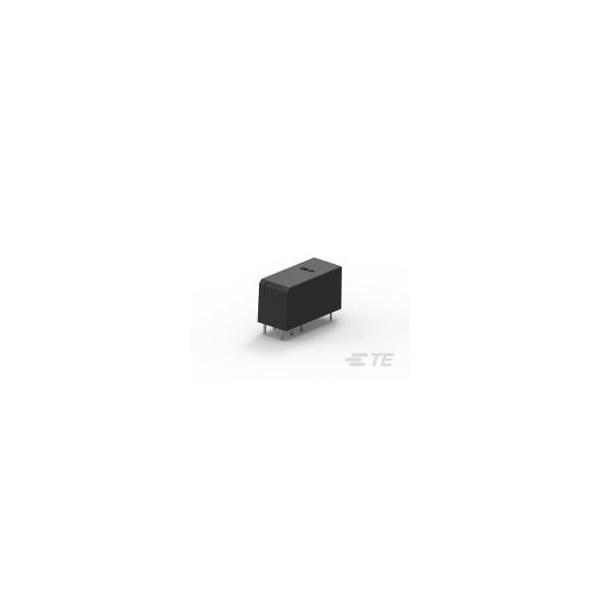

Te Connectivity PCB, Power Relay, 16 A, PCB 3-2158100-5 - main

PCB, Power Relay, 16 A, PCB

  • Mfr # 3-2158100-5

  • Zoro # G801026800

product price:  $1.75
/ea
Sold in multiples of 60 for $105.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Coil Voltage
24V DC
Current Rating
16 A
Features
UL Coil Insulation Class F; Single Contact
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3-2158100-5
Zoro #
G801026800
UPC #
-
Country of Origin
Austria

Dimensions

Dimensions
29 x 12.7 mm

Details

Item
Power Relay
Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Coil Voltage
24V DC
Current Rating
16 A
Features
UL Coil Insulation Class F; Single Contact
Number of Poles
1
Power Consumption - Relay
0.53W
Contact Material
AgNi90/10
Switching Voltage
400 VAC
Contact Limiting Continuous Current
16 A
Operating Temp. Range
-20 to 70°C
Contact Rating
16 A
Contact Limiting Breaking Current
16 A
Coil Type
Monostable, DC
Contact Voltage Rating
250 VAC
Contact Limiting Making Current
30 A
Insulation Creepage
.394 in
Insulation Clearance
.394 in
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Coil Resistance
1086 Ω
Switching Current
100mA @ 12V
Protection Category
RTII
Contact Form
1 Form C (1 CO)
Number of Pins
5
Base Shape
Square
