Shop TE CONNECTIVITY

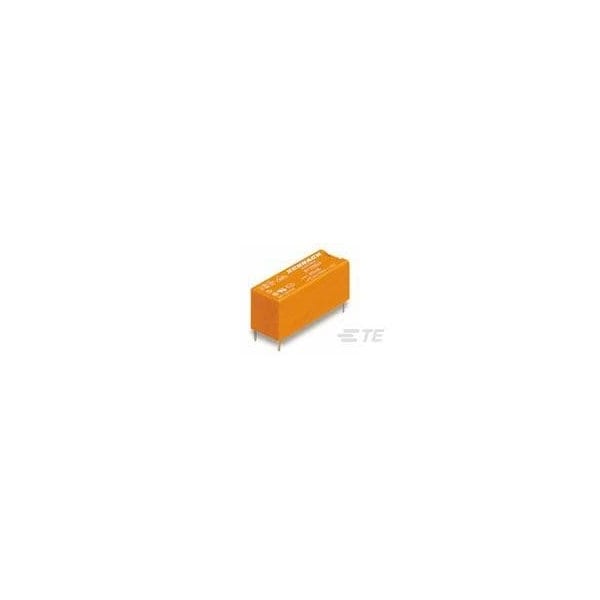

PCB, Power Relay, 8 A, PCB

  • Mfr # 4-1393224-7

  • Zoro # G801026824

product price:  $3.15
/ea
Sold in multiples of 36 for $113.40

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
18V DC
Current Rating
8 A
Contact Material
AgNi0.15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4-1393224-7
Zoro #
G801026824
UPC #
-
Country of Origin
Czechia

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
18V DC
Current Rating
8 A
Contact Material
AgNi0.15
Number of Poles
1
Power Consumption - Relay
247 mW
Insulation Clearance
.315 in
Contact Limiting Continuous Current
8A
Contact Limiting Breaking Current
8A
Coil Type
Monostable, DC
Insulation Creepage
.315 in
Coil Resistance
1310 Ω
Operating Temp. Range
50 to 70°C
Contact Limiting Making Current
8A
Protection Category
RTII
Switching Voltage
400 VAC
Contact Rating
0.333333333333333A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Short-Time Current
8A
Contact Voltage Rating
250 VAC
Contact Rating (AC)
8 A @ 250V
Base Shape
Square
Number of Pins
5
Contact Form
SPDT
