  13. PCB, Power Relay, 8 A, PCB

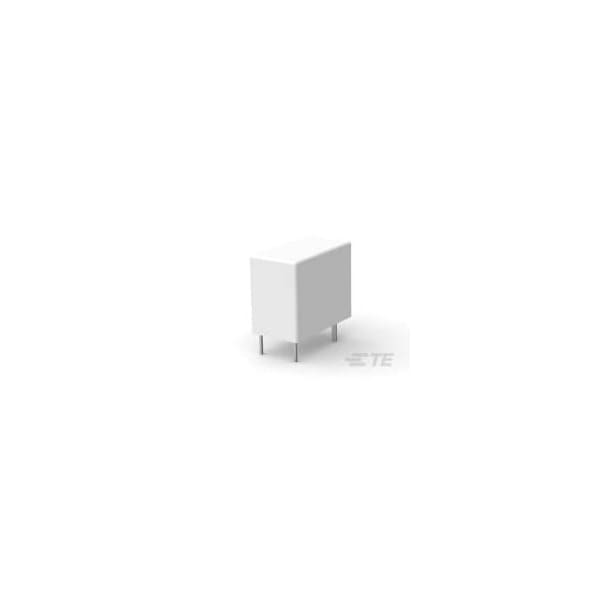

Te Connectivity PCB, Power Relay, 8 A, PCB 8-1419128-1 - main

PCB, Power Relay, 8 A, PCB

  • Mfr # 8-1419128-1

  • Zoro # G001017752

product price: $1.55
/ea
Sold in multiples of 59 for $91.45

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
5V DC
Current Rating
8 A
Contact Rating (DC)
0.333 A @ 30V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8-1419128-1
Zoro #
G001017752
UPC #
-
Country of Origin
China

Details

Item
Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
5V DC
Current Rating
8 A
Contact Rating (DC)
0.333 A @ 30V DC
Features
UL Coil Insulation Class B, Sensitive Version
Power Consumption - Relay
200 mW
Number of Poles
1
Contact Material
AgSnO2
Contact Limiting Breaking Current
8A
Switching Current
100mA @ 5V
Contact Limiting Making Current
8A
Insulation Clearance
.303 in
Switching Voltage
277 VAC, 30 VDC
Contact Limiting Short-Time Current
8A
Operating Temp. Range
50 to 70°C
Coil Resistance
125 Ω
Dielectric Voltage
4000 Vrms Coil and Contact; 750 Vrms Open Contacts
Contact Voltage Rating
30 VDC, 250 VAC
Insulation Creepage
.37 in
Protection Category
RTIII
Contact Rating
0.333333333333333A
Contact Limiting Continuous Current
8A
Coil Type
Monostable, DC
