  11. RECEPT PIDG FASTON 12-10 250

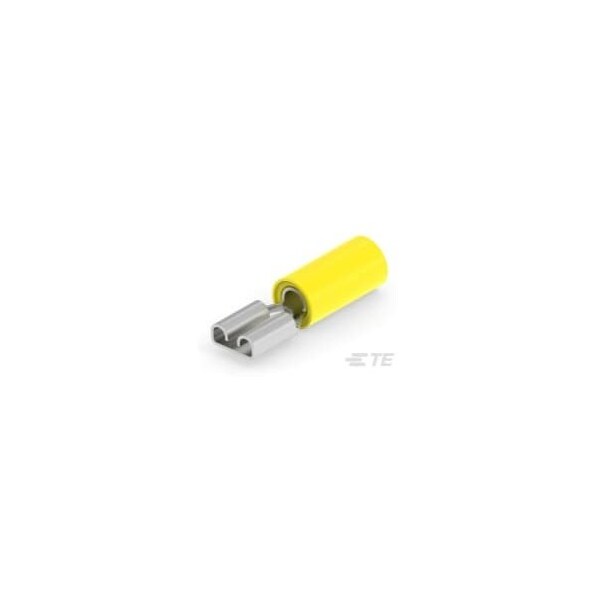

Te Connectivity RECEPT PIDG FASTON 12-10 250 8-640907-1 - main

RECEPT PIDG FASTON 12-10 250

  • Mfr # 8-640907-1

  • Zoro # G700976275

product price: $1.15
/ea
Sold in multiples of 100 for $115.00

Key Features

Wire Size
12 - 10 AWG
Overall Length
1.012 in
Terminal Type
Receptacle
Voltage (Max)
300 V
Fully Insulated
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8-640907-1
Zoro #
G700976275
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
12 - 10 AWG
Overall Length
1.012 in
Mating Tab Thickness
.032 in
Mating Tab Width
.25 in
Receptacle Stock Thickness
.018 in
Wire Insulation Diameter (Max)
.25 in

Details

Terminal Type
Receptacle
Voltage (Max)
300 V
Fully Insulated
No
Insertion Force
Normal
Terminal Orientation
Straight
Insulation Material
Nylon
Discrete Wire Type
Stranded
Barrel Color
Yellow
Operating Temperature Range
105 °C
CSA Certified
Yes
Mating Retention Type
Dimple
Crimp Type
F-Crimp
Wire Insulation Support
With
RU (UL Component Program)
Approved
Insulated
Yes
FASTON
Yes
Plating Material
Tin
Terminates To
Wire & Cable
Disconnect Type
Quick Disconnect Pin

Description
